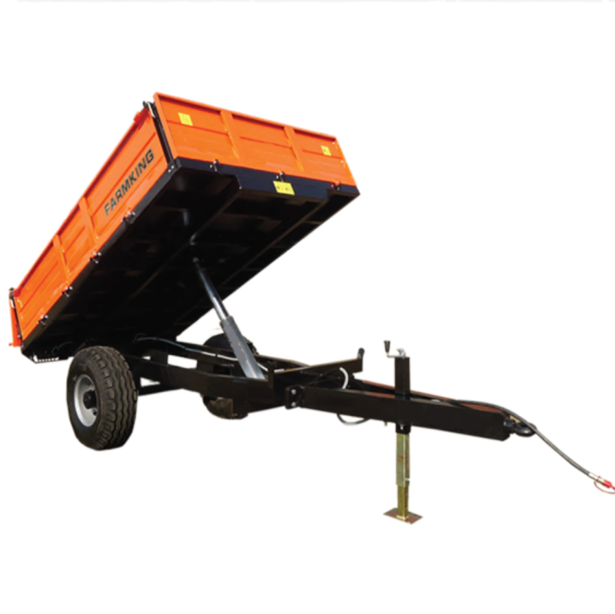

Farmking Tipping Trailers
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Brand: Farmking
Model Name: Tipping Trailers
Implement Type: Trolley / Trailer
Category:…
- About Product
Brand: Farmking
Model Name: Tipping Trailers
Implement Type: Trolley / Trailer
Category: Haulage
Compatible Tractor Power (HP Range): 35–120 HP
Price Range: ₹85,000*–₹240,000*
- Key Specification and Technology – Farmking Tipping Trailers
| Variant Capacity | Trailer Type | Loading Capacity (Tons) | Body Dimensions (L×W×H) ft | Axles | Wheels | Tyre Size | Chassis Size mm | Hydraulic Cylinder | Round Table mm |
| 2–4 Ton | Single-axle tipping | 2–4 | 10×5×2 | 1 | 4 | 9.00×16 | 150×75 Box | 4 Ton ×1 | 600 |
| 5–8 Ton | Dual-axle tipping | 5–8 | 12×6×2.5 | 2 | 8 | 11.2/20 | 200×75 Box | 6 Ton ×2 | 750 |
| 10 Ton | Multi-axle tipping | 10 | 14×6.5×3 | 2 | 8 | 12.5/20 | 250×100 Box | 8 Ton ×2 | 750 |
Tipping Mechanism: Three-way hydraulic tipping
Body Material: High-tensile steel with reinforced side and floor plates
Side Wall Height & Drop Side: 0.6 m fixed sides with removable panels
Tipping Angle Range: 45°–55°
Mounting Type: Drawbar coupling
Hydraulic System: 1800 psi rating, 50 cc cylinder capacity
- Technical Specifications – Farmking Tipping Trailers
Payload Distribution: Conforms to IS-10718 weight distribution standards
Axle Rating: 4–6 tons per axle, depending on variant
Suspension: Semi-elliptical leaf springs
Braking: Mechanical drum brakes on all wheels
Bearings: Sealed heavy-duty hubs for dust and water resistance
Frame Construction: Fully welded box-section chassis with anti-corrosion primer
Maintenance: Grease pivot and hinge points every 50 hours; inspect hydraulics monthly
Spare Parts: Nationwide distribution; cost-effective replacements*
Warranty: 18-month manufacturer warranty with on-site support
Corrosion Treatment: Powder-coated finish with rust-inhibitor layer
Regulatory Compliance: Meets Indian farm machinery transport and safety standards
- Agricultural Benefits and Applications of Farmking Tipping Trailers
Farmking Tipping Trailers streamline hauling of crops, inputs, and equipment. During harvest, they enable rapid grain, fruit, and vegetable transport from field to storage. Three-way tipping ensures complete discharge in tight spaces. They also support bulk feed and fertilizer distribution.
- Enhanced Farming Efficiency through Farmking Tipping Trailers
Hydraulic tipping reduces unload time by up to 70%, cutting labor costs and downtime. Optimized chassis design lowers fuel use per ton. Fewer trips and faster cycles boost overall farm productivity and minimize crop bruising.
- Versatile Agricultural Applications through Farmking Tipping Trailers
Suitable for:
Cereal transport (wheat, rice, maize)
Cash crops (cotton, sugarcane, oilseeds)
Horticultural produce (potato, tomato, onion)
Livestock feed (hay, concentrate)
Fertilizer and seed distribution
Equipment and small machinery hauling
- Performance Specifications of Farmking Tipping Trailers
Loading/Unloading Efficiency: Full discharge in under 10 sec
Tipping Speed & Hydraulic Ratings: 7 sec tip-up at 1800 psi
Ground Clearance: 450 mm
Stability: Low center of gravity for safe operation on slopes
Turning Radius: 3.5 m for multi-axle variants
- Farmer Decision Support
Small farms (<5 acres): 2–4 ton single-axle models
Medium farms (5–25 acres): 5–8 ton dual-axle trailers
Large farms (>25 acres): 10 ton multi-axle units
Application-Specific:
Grain haulage: 5–8 ton for bulk loads
Livestock feed: 2–4 ton compact trailers
Horticulture: 2 ton for delicate produce
Budget Tiers:
Economy: Basic non-tilt cost-effective units
Mid-range: Single-cylinder tipping for balanced performance
Premium: Three-way hydraulic tipping for maximum versatility
ROI: Payback within one season through labor and fuel savings*
- Maintenance and Care of Farmking Tipping Trailers
Hydraulics: Daily fluid level checks; quarterly seal inspections
Bearings & Axles: Grease every 50 hours; use EP2 grease
Frame & Body: Clean and touch-up protective coatings after wet work
Tires: Inspect pressure before each use; replace at <2 mm tread
Brakes: Adjust mechanical drums every 100 hours
Storage: Store under cover; drain hydraulic lines in off-season
Pre-Use Checklist: Hitch integrity, tire pressure, hydraulic hoses, side panels
- Longevity Factors of Farmking Tipping Trailers
High-tensile steel and robust welds ensure structural integrity. Sealed hydraulic cylinders and bearings extend service life. Modular panels and standardized components simplify repairs. Expected lifespan exceeds 12 years under normal use.
FAQs
What tractor horsepower is required for Farmking Tipping Trailers?
35–120 HP tractors handle the full range safely.
What trailer types does Farmking offer and their advantages?
Three-way hydraulic trailers allow side/front/rear tipping for complete discharge. Single-side tip units are simpler and more affordable.
What is the loading capacity and dimensions?
Variants span 2–10 tons, with body footprints from 10×5 ft to 14×6.5 ft.
How do these trailers improve material handling efficiency?
Hydraulic tipping accelerates unloading, reduces manual labor, and consolidates trips.
Why is hydraulic system quality crucial?
High-pressure cylinders and quality seals ensure consistent tipping performance and safety.
Are Farmking trailers compatible with all tractor brands?
Yes, standard drawbar coupling and adjustable hitch heights suit most Indian tractors.
How controlled is the tipping angle?
Hydraulic control delivers a stable 45°–55° tipping range for even discharge.
How do they compare to other farm transport methods?
Offer faster unloading than manual trolleys and higher payloads than simple farm carts.
What maintenance schedule should be followed?
Daily hydraulic checks, bi-weekly greasing, and quarterly seal inspections.
What warranty and after-sales support are available?
18-month warranty with nationwide service network and genuine spares.
TractorXpert Advantage: TractorXpert empowers farmers to compare Farmking and other trailer models by price*, features, and benefits. This helps farmers save on initial investment, reduce labor and fuel costs, and enhance logistics efficiency—ensuring reliable farm transport solutions optimized for every scale of modern agriculture.
