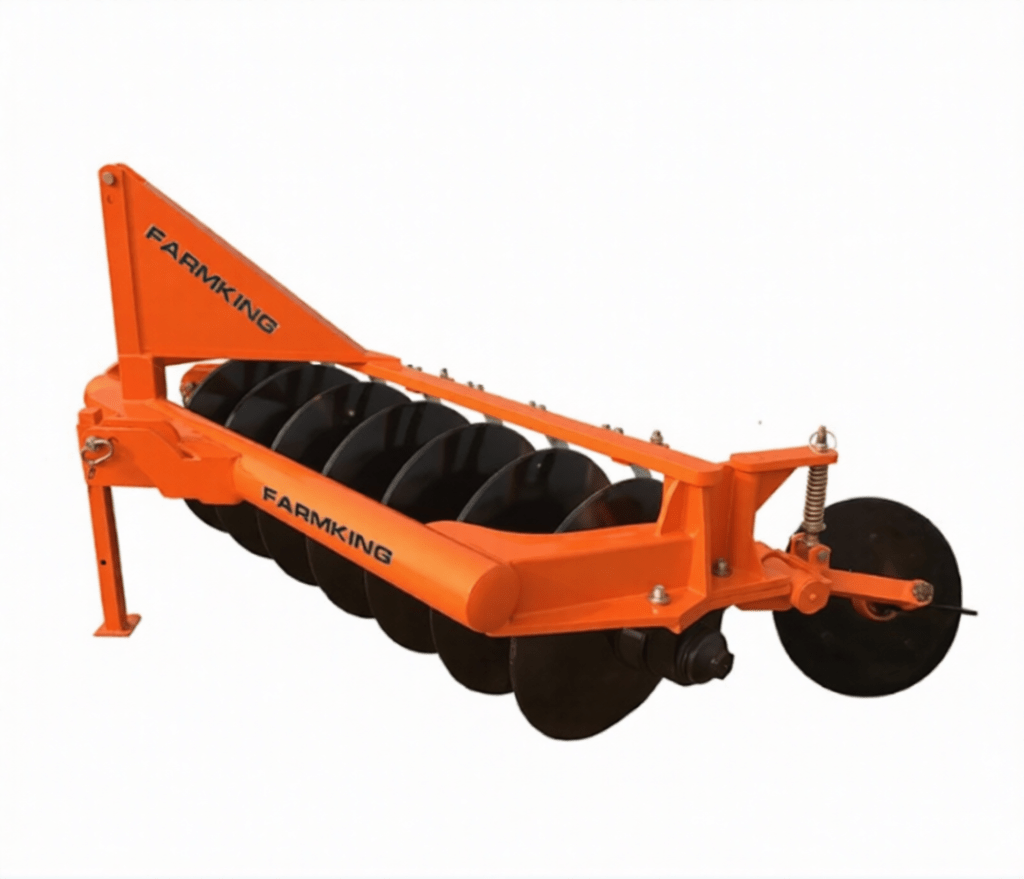

Farmking Poly Disc Harrow (Plough)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Farmking Poly Disc Harrow price* in India, specifications, working width, depth & disc details.…
- About Product
Farmking Poly Disc Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology – Poly Disc Harrow
| Variant | FKPDH-6D | FKPDH-7D | FKPDH-8D |
| Tillage Width | 1.210 m (4.0 ft) | 1.460 m (4.8 ft) | 1.710 m (5.6 ft) |
| No. of Discs | 6 | 7 | 8 |
| Bearing Hubs | 2 (Heavy Duty, Pedestal Type) | 2 (Heavy Duty, Pedestal Type) | 2 (Heavy Duty, Pedestal Type) |
| Gang Axle | 90 mm tube with solid ends | 90 mm tube with solid ends | 90 mm tube with solid ends |
| Scraper | Adjustable | Adjustable | Adjustable |
| Disc Diameter | 610 mm / 24 in (optional 660 mm/26 in) | 610 mm / 24 in (optional 660 mm/26 in) | 610 mm / 24 in (optional 660 mm/26 in) |
| Disc Spacing | 250 mm (10 in) | 250 mm (10 in) | 250 mm (10 in) |
| Disc Type | Notched / Plain (optional) | Notched / Plain (optional) | Notched / Plain (optional) |
| Coulter | Pivotable, Spring Loaded | Pivotable, Spring Loaded | Pivotable, Spring Loaded |
| Working Depth | Up to 200 mm (8 in) | Up to 200 mm (8 in) | Up to 200 mm (8 in) |
| Approx. Weight | 505 kg (1,112 lbs) | 560 kg (1,243 lbs) | 610 kg (1,342 lbs) |
| Tractor Power Requirement | 50*–75* HP | 75*–90* HP | 90*–110* HP |
| Mounting Type | 3-point linkage | 3-point linkage | 3-point linkage |
| Frame Material & Construction | Carbon/boron steel frame | Carbon/boron steel frame | Carbon/boron steel frame |
- Technical Specifications
Suitable for light to medium soils and light clay, the Poly Disc Harrow delivers up to 85% field efficiency, covering 1.5 ha/hr at 4–5 km/hr. Bearings feature dustproof seals and require greasing every 50 hours. Spare parts, including discs and hubs, are available through Farmking dealers. A 12-month warranty covers structural components. Performs reliably in wet and dry conditions across cropping seasons.
- Agricultural Benefits and Applications of Poly Disc Harrow
Ideal for secondary tillage, it breaks soil crusts, incorporates crop residues, and levels the field in one pass. Adjustable scrapers and spring-loaded coulters prevent clogging and ensure uniform soil mixing, improving seedbed quality.
- Enhanced Farming Efficiency through Poly Disc Harrow
Single-pass operation reduces labor and fuel compared to multiple implements. Covers up to 1.5 ha/hr, saving time on field preparation. Simple hitching and adjustable scrapers minimize downtime.
- Versatile Crop Applications through Poly Disc Harrow
Applicable to cereals (wheat, rice, barley), cash crops (cotton, sugarcane, maize), pulses (chickpea, lentils), vegetables (potato, tomato), and orchard site preparation.
- Performance Specifications of Poly Disc Harrow
Operating speeds: 3–5 km/hr. Even pressure distribution prevents wheel rutting. Up to 200 mm penetration handles tough residues. Pivotable, spring-loaded coulters maintain consistent depth and finish.
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (< 5 acres): FKPDH-6D
- Medium farms (5–25 acres): FKPDH-7D
- Large farms (> 25 acres): FKPDH-8D
Soil-specific Recommendations:
- Light soils: plain discs
- Medium soils: notched discs for better residue cutting
- Heavy clay: larger diameter discs with wider spacing
Budget Categories:
- Economy: FKPDH-6D basic model
- Mid-range: FKPDH-7D with optional notched discs
- Premium: FKPDH-8D heavy-duty variant
ROI guidance outlines savings on fuel, labor, and yield gains. Financing schemes and government subsidies for farm mechanization support purchases.
- Maintenance and Care of Poly Disc Harrow
Sharpen or replace discs when wear exceeds 10%. Grease bearings every 50 hours using NLGI#2 grease. Inspect welds and bolts quarterly; apply rust-preventive coating before storage. Pre-operation checklist includes scraper clearance, coulter function, and linkage alignment.
- Longevity Factors of Poly Disc Harrow
Built with boron steel blades and a heavy-duty tube axle, it offers superior wear resistance. Modular scraper and disc assemblies allow quick replacements, extending service life beyond five years under normal use.
FAQs – Farmking Poly Disc Harrow
What tractor horsepower is required?
50*–110* HP depending on variant.
What disc types are available and what do they do?
Notched discs for residue cutting; plain discs for soil smoothing.
What is the working width and depth?
1.210–1.710 m width; up to 200 mm depth.
How does it help in seedbed preparation?
Breaks clods, mixes residues, and levels soil in one pass.
Why is disc quality important?
Boron steel discs resist wear and maintain cutting efficiency.
Is it compatible with all tractor brands?
Yes; fits standard 3-point hitch tractors.
What about gang angle adjustment and depth control?
Adjustable scrapers and spring-loaded coulters ensure precise depth.
How does it compare to cultivators and rotavators?
Disc harrows excel in residue management and field leveling; cultivators/rotavators focus on deeper soil pulverization.
What maintenance schedule is recommended?
Grease bearings every 50 hours and inspect frame quarterly.
What warranty and service support is available?
12-month manufacturer warranty with regional service centers and genuine spare part network.
By comparing specifications, features, and prices across manufacturers, TractorXpert helps farmers select the most affordable harrow implement, improve seedbed quality, reduce tillage operations, and enhance overall farm productivity through efficient soil preparation solutions.
Product General Information
Brand Name:
Farmking
Model Name:
Poly Disc Harrow (Plough)
Implement Type:
Harrow
Category:
Tillage
Compatible Tractor Power:
50* – 110* HP
Engine
Transmission
Implement Type:
Harrow
Category:
Tillage
Power Take off
Dimension & Weight
Hydraulics
Wheels
Cutting Mechanism
Reel
Threshing and Cleaning
Capacity
Other Information
₹ 340000
₹ 1L
₹ 25L
6.5 %
6%
26%
12
12
60
