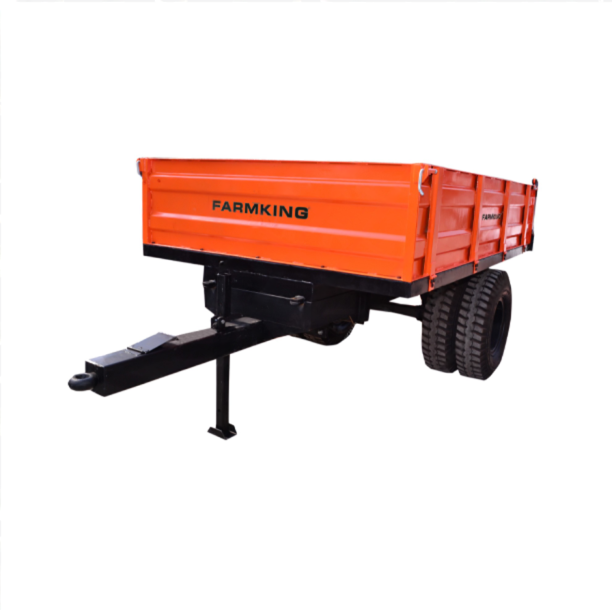

Farmking Non-Tipping Trailers
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Brand: Farmking
Model Name: Non-Tipping Trailers
Implement Type: Trolley / Trailer
Category:…
- About Product
Brand: Farmking
Model Name: Non-Tipping Trailers
Implement Type: Trolley / Trailer
Category: Haulage
Compatible Tractor Power (HP Range): 35–60 HP
Price Range: ₹80,000*–₹200,000*
- Key Specification and Technology – Farmking Non-Tipping Trailers
| Variant Capacity | Trailer Type | Loading Capacity (Tons) | Body Volume (cu.m.) | Body Dimensions (L×W×H) ft | Axles | Wheels | Tyre Size | Chassis Size mm | Mounting Type |
| 3–5 Ton | Single-axle | 3–5 | 2.05 | 10×5×2 | 1 | 4 | 9.00×16 | 150×75 Box | Drawbar coupling |
| 6–8 Ton | Dual-axle | 6–8 | 2.05–3.50 | 12×6×2.5 | 2 | 8 | 11.2/20 | 200×75 Box | Drawbar coupling |
| 10 Ton | Multi-axle | 10 | 4.00 | 14×6.5×3 | 2 | 8 | 12.5/20 | 250×100 Box | Drawbar coupling |
Body Material: High-tensile steel with reinforced floors
Side Walls: Fixed 0.6 m height, non-drop design
Mounting Type: Drawbar coupling (pin hitch compatible)
- Technical Specifications – Farmking Non-Tipping Trailers
Payload Distribution: IS-10718 compliant load spread
Axle Rating: 4–6 tons per axle based on variant
Suspension: Leaf spring assemblies
Braking: Mechanical drum brakes on rear axle
Bearings: Sealed, maintenance-free hubs
Frame Construction: Welded box-section chassis with anti-corrosion coating
Maintenance: Lubricate axle bearings every 50 hours; inspect frame annually
Spare Parts: Widely available; economical replacement costs*
Warranty: 12-month manufacturer warranty
Corrosion Treatment: Zinc-rich primer with powder coat finish
Compliance: Meets Indian farm transport safety regulations
- Agricultural Benefits and Applications
Farmking Non-Tipping Trailers excel at bulk hauling of grain, fertilizer, and equipment. Their fixed-body design ensures structural rigidity for heavy loads. These trailers improve field-to-storage movement and support feed and input distribution.
- Enhanced Farming Efficiency
Non-Tipping designs reduce mechanical complexity, lowering maintenance and repair time. Stable platforms enable safer loading and unloading with forklifts or conveyors. Efficient payload capacity maximizes tractor towing efficiency, reducing fuel consumption.
- Versatile Agricultural Applications
Ideal for:
Cereal and grain transport
Cash crop haulage (cotton, sugarcane, oilseeds)
Horticultural packs (crates, bins)
Livestock feed movement
Fertilizer and seed transport
Equipment and tool carrying
- Performance Specifications
Load Efficiency: 95% payload utilization with minimal body flex
Ground Clearance: 400 mm under chassis
Turning Radius: 3 m for dual-axle variants
Stability: Low center of gravity suited for uneven fields
- Farmer Decision Support
Small farms (<5 acres): 3–5 ton single-axle trailers
Medium farms (5–25 acres): 6–8 ton dual-axle models
Large farms (>25 acres): 10 ton multi-axle units
Budget Options:
Economy: Basic non-tipping for cost-effective haulage
Mid-range: Reinforced chassis for heavier loads
Premium: High-capacity axles and upgraded tires
- Maintenance and Care
Bearings & Axles: Grease every 50 hrs
Frame & Body: Clean and inspect for rust biannually
Tires: Check pressure before each use; replace below 2 mm tread
Brakes: Adjust drum shoes every 100 hrs
Storage: Keep under shelter; apply protective coating in off-season
Pre-Operation Checklist: Hitch security, tire pressure, brake function
- Longevity Factors
Robust steel construction with corrosion-resistant coatings ensures over 10 years of service. Sealed hubs and simple suspension reduce wear points. Standardized parts allow easy replacement and lower downtime.
FAQs
What tractor horsepower is required for Farmking Non-Tipping Trailers?
35–60 HP tractors provide optimal towing capacity.
What trailer types are available and their advantages?
Non-tipping trailers offer simpler design, lower maintenance, and sturdy load platforms. Tipping units ease unloading while non-tipping designs excel in rigid cargo support.
What is the loading capacity and dimensions?
Variants range 3–10 tons, with bodies from 10×5×2 ft to 14×6.5×3 ft and volumes up to 4 cu.m.
How does the trailer help in farm transport efficiency?
Rigid design enables quick on/off loading, reduces downtime, and maximizes payload per trip.
Why is structure quality important?
High-tensile steel and reinforced welds prevent flexing under heavy loads, ensuring safe and reliable operation.
Is the trailer compatible with all tractor brands?
Yes, standard drawbar coupling and adjustable hitch heights fit most tractors.
How does it compare to other transport methods?
Non-tipping trailers offer greater structural strength than trolleys and lower upkeep than hydraulic tipping units.
What maintenance schedule should be followed?
Grease axles every 50 hours, inspect frame twice a year, and adjust brakes every 100 hours.
What warranty and service support are available?
12-month warranty with nationwide dealer network and genuine spares available.
TractorXpert Advantage: TractorXpert enables farmers to compare Farmking Non-Tipping and other trailer models on price*, specifications, and performance—helping them save costs, optimize farm logistics, and boost productivity with dependable transport solutions suited to every agricultural operation.
