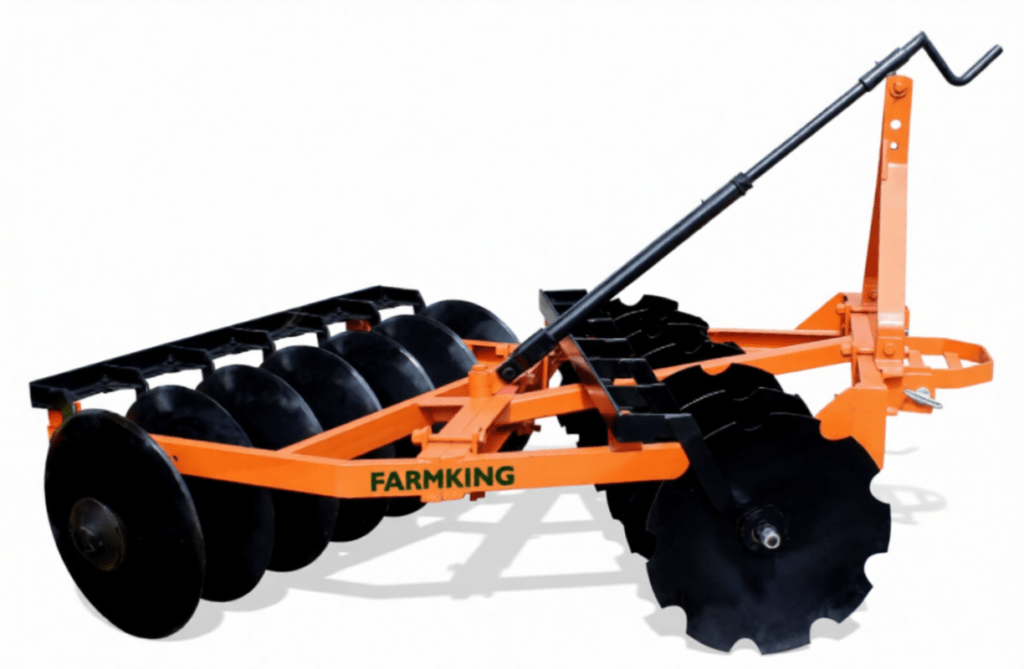

Farmking Mounted Offset Disc Harrow (Farmking Type)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Farmking Mounted Offset Disc Harrow price* in India, specifications, working width, depth & disc…
- About Product
Farmking Mounted Offset Disc Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology – Mounted Offset Disc Harrow
| Variant | FKDHFT-12D | FKDHFT-14D | FKDHFT-16D |
| Working Width | 1.42 m (4.7 ft) | 1.53 m (5.0 ft) | 1.677 m (5.5 ft) |
| Bearing Hubs | 4 | 4 | 4 / 6 |
| Gang Axle | 32 mm solid square rod | 32 mm solid square rod | 32 mm solid square rod |
| Underframe Clearance | 432 mm (17 in) | 432 mm (17 in) | 432 mm (17 in) |
| Disc Diameter | 560 mm / 22 in (optional 610 mm/24 in) | 560 mm / 22 in (optional 610 mm/24 in) | 560 mm / 22 in (optional 610 mm/24 in) |
| Disc Spacing | 228 mm (9 in) / 254 mm (10 in) | 228 mm (9 in) / 254 mm (10 in) | 228 mm (9 in) / 254 mm (10 in) |
| Disc Type | Plain / Notched (front gang) | Plain / Notched (front gang) | Plain / Notched (front gang) |
| Working Depth | Up to 125 mm (5 in) | Up to 125 mm (5 in) | Up to 125 mm (5 in) |
| Weight | 360 kg (792 lbs) | 400 kg (880 lbs) | 439 kg (968 lbs) |
| Tractor Power Requirement | 35*–40* HP | 40*–50* HP | 50*–60* HP |
| Mounting Type | 3-point linkage | 3-point linkage | 3-point linkage |
| Frame Material & Construction | Angle section frame | Angle section frame | Angle section frame |
- Technical Specifications
Designed for durability and ease of service, the Farmking Offset Disc Harrow suits light to heavy soils, including clay and rocky conditions. Field efficiency reaches up to 88% at recommended operating speeds, with minimal impact on tractor fuel consumption. Heavy-duty bearings feature waterproof and dustproof seals, requiring lubrication every 50 hours. Spare discs, hubs, and axles are available nationwide. A 12-month warranty covers structural components, with optional extended service plans. Suitable for both wet and dry fields, this harrow adapts to seasonal variations and diverse crop rotations.
- Agricultural Benefits and Applications of Mounted Offset Disc Harrow
Secondary tillage operations such as clod breaking, residue incorporation, and seedbed refinement are achieved in a single pass. Uniform disc spacing and adjustable gang angles enhance soil mixing, control weeds, and reduce compaction, laying a smooth, friable seedbed.
- Enhanced Farming Efficiency through Mounted Offset Disc Harrow
Single-pass operation saves time and reduces labor. Compared to multiple implements, this harrow lowers draft requirements, boosting fuel efficiency. Coverage rates up to 1.8 ha/hr at 4–6 km/hr maximize productivity.
- Versatile Crop Applications through Mounted Offset Disc Harrow
Applicable to cereals (wheat, rice, barley), cash crops (cotton, sugarcane, maize), pulses (chickpea, lentils), vegetables (potato, tomato), and orchard pre-plant conditioning.
- Performance Specifications of Mounted Offset Disc Harrow
Operating speeds: 3–6 km/hr. Ground pressure is evenly distributed across discs, preventing ruts. Penetration up to 125 mm ensures efficient residue cutting, while adjustable gang angle delivers a level finish.
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (< 5 acres): FKDHFT-12D
- Medium farms (5–25 acres): FKDHFT-14D
- Large farms (> 25 acres): FKDHFT-16D
Soil-specific Recommendations:
- Light soils: plain disc setting
- Medium soils: notched discs for enhanced penetration
- Heavy clay: wider spacing and larger diameter disc
Budget Categories:
- Economy: FKDHFT-12D basic model
- Mid-range: FKDHFT-14D with optional notched discs
- Premium: FKDHFT-16D with extra bearing hubs
ROI guidance covers cost savings from fuel, labor, and increased yield. Financing schemes and government subsidies for farm mechanization are available to support purchase.
- Maintenance and Care of Mounted Offset Disc Harrow
Keep discs sharp and replace worn blades promptly. Lubricate bearings every 50 hours with NLGI#2 grease. Inspect frame bolts and apply rust-preventive spray before storage. Pre-operation checks include linkage pins, disc alignment, and hydraulic settings.
- Longevity Factors of Mounted Offset Disc Harrow
Built with heat-treated gang rods and boron steel discs, this harrow offers high wear resistance. Modular disc assemblies simplify replacements, ensuring over five years of reliable service under normal use.
FAQs – Mounted Offset Disc Harrow
What tractor horsepower is required?
35*–60* HP depending on variant.
What types of discs are available and what do they do?
Plain discs for smooth finishing; notched discs for cutting heavy residues.
What is the working width and depth capacity?
1.42 m–1.677 m width; up to 125 mm depth.
How does it help in seedbed preparation?
Breaks clods, levels soil, and mixes residues in one pass.
Why is disc quality important?
Durable discs ensure uniform soil cutting and reduce breakage.
Is it compatible with all tractor brands in India?
Yes; fits all standard 3-point hitch tractors.
How are gang angle and depth controlled?
Gang angle is adjustable; hydraulic depth settings offer precise control.
How does it compare to cultivators and rotavators?
Disc harrows excel at residue management and leveling, while cultivators and rotavators focus on deeper mixing.
What maintenance schedule is recommended?
Grease bearings every 50 hours and perform quarterly inspections.
What warranty and service support is available?
12-month manufacturer warranty with regional service centers and genuine spare parts network.
By comparing specifications, features, and prices across manufacturers, TractorXpert helps farmers select the most suitable harrow implement, saving money, improving seedbed quality, reducing tillage operations, and boosting overall farm productivity through efficient soil preparation solutions.
Product General Information
Brand Name:
Farmking
Model Name:
Mounted Offset Disc Harrow (Farmking Type)
Implement Type:
Harrow
Category:
Tillage
Compatible Tractor Power:
35* – 60* HP
