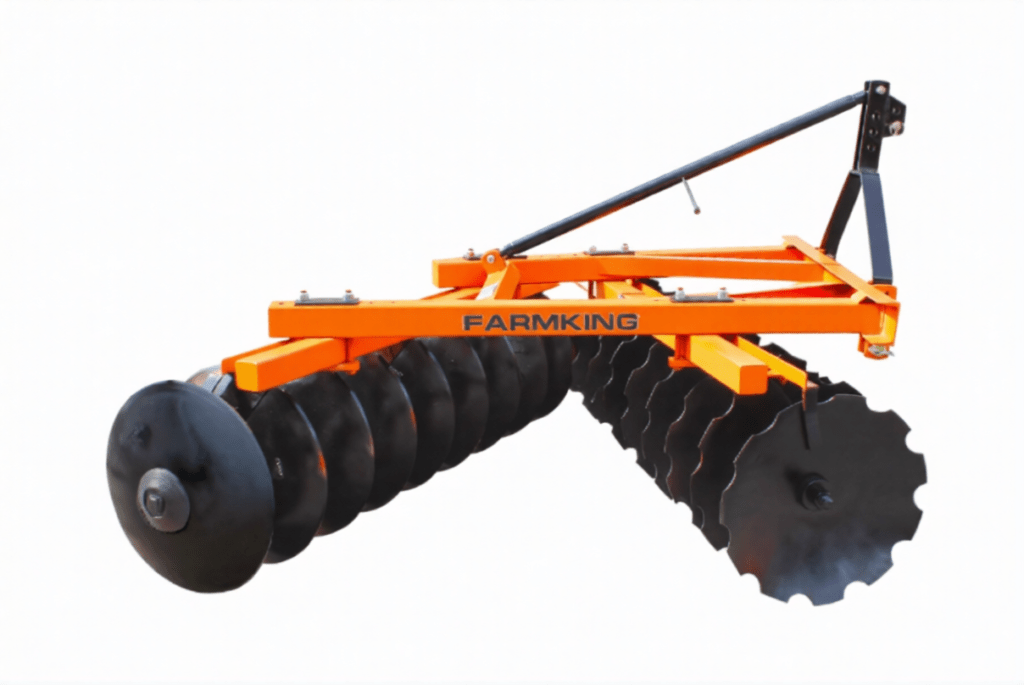

Farmking Mounted Disc Harrow
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Farmking Mounted Disc Harrow price* in India, specifications, working width, depth & disc details.…
- About Product
Farmking Mounted Disc Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology – Farmking Mounted Disc Harrow
| Variant | FKDHUF-12D | FKDHUF-14D | FKDHUF-16D | FKDHUF-18D |
| Working Width | 1.42 m (4.7 ft) | 1.635 m (5.4 ft) | 1.852 m (6.1 ft) | 2.068 m (6.8 ft) |
| Disc Diameter | 560 mm / 22 in | 560 mm / 22 in (optional 610 mm/24 in) | 610 mm (24 in) | 610 mm (24 in) |
| Disc Spacing | 228 mm (9 in) | 228 mm (9 in) | 254 mm (10 in) | 254 mm (10 in) |
| No. of Discs | 12 | 14 | 16 (with extra hubs) | 18 |
| Underframe Clearance | 585 mm (23 in) | 585 mm (23 in) | 585 mm (23 in) | 585 mm (23 in) |
| Working Depth | Up to 225 mm (9 in) | Up to 225 mm (9 in) | Up to 225 mm (9 in) | Up to 225 mm (9 in) |
| Approx. Weight | 340 kg (750 lbs) | 360 kg (794 lbs) | 400 kg (882 lbs) | 580 kg (1,279 lbs) |
| Tractor Power Requirement | 35*–40* HP | 40*–50* HP | 50*–60* HP | 60*–75* HP |
| Mounting Type | 3-point linkage | 3-point linkage | 3-point linkage | 3-point linkage |
| Frame Material & Construction | Heavy-duty square tube frame | Heavy-duty square tube frame | Heavy-duty square tube frame | Heavy-duty square tube frame |
| Gang Axle | 32 mm solid square rod | 32 mm solid square rod | 32 mm solid square rod | 32 mm solid square rod |
| Disc Type | Plain / Notched (front gang) | Plain / Notched (front gang) | Plain / Notched (front gang) | Plain / Notched (front gang) |
- Technical Specifications
Farmking disc harrows are engineered for varied soil conditions and feature robust bearings rated for dustproof and waterproof performance. Maintenance intervals are designed around grease lubrication every 50 hours of operation, with spare discs, hubs, and gang rods readily available through an extensive dealer network. A standard 12-month warranty covers structural and gearbox components, while service support includes regional workshops and on-site assistance.
- Soil Type Compatibility: Light to heavy soils, including clay and rocky terrains
- Field Efficiency: Up to 90% coverage at recommended speeds
- Fuel Impact: Minimal additional consumption; optimized to reduce tractor drawbar load
- Durability Rating: Heavy-duty build quality for extended service life
- Maintenance Requirements: Quarterly inspection and lubrication; disc replacement every 1,000 hectares
- Spare Parts Availability: Nationwide dealer network with genuine Farmking parts
- Warranty & Service Support: 12-month manufacturer warranty; optional extended plans
- Weather Suitability: Effective in wet and dry field conditions
- Crop Compatibility: Versatile use across cereal, cash, pulse, and vegetable crops
- Agricultural Benefits and Applications
The Farmking Mounted Disc Harrow delivers efficient secondary tillage by refining seedbeds, managing crop residues, and controlling weeds in a single pass. Its disc configuration breaks soil clods, enhances infiltration, and reduces compaction, setting an optimal foundation for planting.
- Enhanced Farming Efficiency
- Time Savings: Combines residue management and soil leveling in one pass
- Fuel Efficiency: Lower draft requirement compared to multiple implements
- Labor Reduction: Simple hitch-and-go operation reduces manual adjustments
- Productivity: Covers up to 2 hectares per hour at 4–6 km/hr speeds
- Versatile Crop Applications
- Cereal Crops: Wheat, barley, oats, rice
- Cash Crops: Cotton, sugarcane, maize, sunflower
- Pulse Crops: Chickpea, lentils, pigeon pea
- Vegetables: Potato, onion, tomato
- Orchards & Plantations: Pre-plant soil conditioning
- Performance Specifications
- Operating Speed: 3–6 km/hr
- Ground Pressure Distribution: Uniform gang weight reduces wheel rutting
- Penetration Capability: Up to 225 mm in medium soils
- Finish Quality: Smooth, level seedbed with minimal ridges
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (< 5 acres): FKDHUF-12D or 14D models
- Medium farms (5–25 acres): FKDHUF-14D or 16D models
- Large farms (> 25 acres): FKDHUF-16D or 18D models
Soil-specific Recommendations:
- Light soils: Standard plain disc configuration
- Medium soils: Notched disc option for better soil penetration
- Heavy clay: 610 mm disc with 10 in spacing
Budget Categories:
- Economy: FKDHUF-12D basic model
- Mid-range: FKDHUF-14D/16D with optional notched discs
- Premium: FKDHUF-18D heavy-duty with extra hubs
Guidance on ROI and payback period helps farmers evaluate long-term benefits. Financing options include manufacturer schemes and government subsidies for farm mechanization.
- Maintenance and Care
- Disc/Tine Maintenance: Sharpen or replace discs based on wear indicators
- Bearing Lubrication: Grease every 50 operating hours using NLGI#2
- Frame Care: Inspect and tighten bolts; apply rust-preventive coatings seasonally
- Seasonal Storage: Clean, dry, and store under cover to prevent corrosion
- Pre-operation Checklist: Check linkage pins, disc alignment, and hydraulic settings
- Longevity Factors
Constructed with boron steel discs and heat-treated gang rods, the Farmking disc harrow delivers superior wear resistance. Modular gang assemblies allow easy replacement, ensuring service life beyond 5 years under typical use.
FAQs
What tractor horsepower (HP) is required for Farmking Mounted Disc Harrow?
35*–60* HP depending on variant.
What types of harrows are available in this product, and what do they do?
Plain discs for smooth finish; notched discs for better residue cutting.
What is the working width and depth capacity?
From 1.42 m to 2.07 m width; up to 225 mm depth.
How does it help in seedbed preparation and soil finishing?
Breaks clods, levels soil, and incorporates residues in one pass.
Why is disc quality and tine strength important?
High-quality discs minimize breakage and ensure uniform soil cutting.
Is it compatible with all tractor brands and models in India?
Yes, uses a standard 3-point linkage.
What about gang angle adjustment and depth control?
Adjustable gang angle and hydraulic depth control provide precise operation.
How does it compare to cultivators and rotavators?
Disc harrows excel at residue management and leveling, while cultivators and rotavators focus on deeper tillage and soil pulverization.
What maintenance schedule should be followed?
Quarterly inspections with grease lubrication every 50 hours.
What warranty and after-sales support is available?
12-month warranty with regional service centers and genuine spare part network.
By comparing variants, features, and prices across manufacturers, TractorXpert helps farmers select the most affordable harrow implement, improve seedbed quality, and enhance overall farm productivity through efficient soil preparation solutions.
