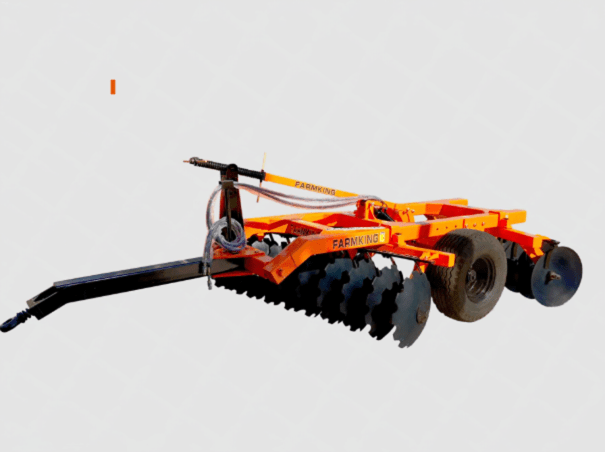

Farmking Hydraulic Disc Harrow (Trailed Type)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Farmking Hydraulic Disc Harrow price* in India, specifications, working width, depth & disc details.…
- About Product
Farmking Hydraulic Disc Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology – Hydraulic Disc Harrow
| Variant | FKHDH-20D | FKHDH-24D | FKHDH-28D |
| Working Width | 2.30 m (7.5 ft) | 2.70 m (8.9 ft) | 3.10 m (10.2 ft) |
| No. of Discs | 20 | 24 | 28 |
| Bearing Hubs | 8 | 8 | 8 |
| Gang Axle | 32 mm solid square rod | 32 mm solid square rod | 32 mm solid square rod |
| Tyre Size | 400/60–15.5 | 400/60–15.5 | 400/60–15.5 |
| Disc Diameter | 610 mm / 24 in (optional 660 mm/26 in) | 610 mm / 24 in (optional 660 mm/26 in) | 610 mm / 24 in (optional 660 mm/26 in) |
| Disc Spacing | 228 mm (9 in) | 228 mm (9 in) | 228 mm (9 in) |
| Disc Type | Notched front & plain rear | Notched front & plain rear | Notched front & plain rear |
| Gang Type | Split gang | Split gang | Split gang |
| Working Depth | Up to 150 mm (6 in) | Up to 150 mm (6 in) | Up to 150 mm (6 in) |
| Approx. Weight | 1,500 kg (3,300 lbs) | 1,660 kg (3,652 lbs) | 1,830 kg (4,206 lbs) |
| Tractor Power Requirement | 80*–90* HP | 110*–135* HP | 140*–165* HP |
| Mounting Type | Trailed | Trailed | Trailed |
| Frame Material & Construction | Heavy-duty square tube frame | Heavy-duty square tube frame | Heavy-duty square tube frame |
- Technical Specifications
Designed for heavy-duty secondary tillage in light to rocky soils, this hydraulic disc harrow delivers up to 94% field efficiency, covering 3 ha/hr at 6 km/hr. Sealed bearings with waterproof and dustproof ratings require greasing every 50 hours. Spare discs and hubs are stocked across regional dealers. A 12-month warranty covers frame and hydraulic components with optional extended service plans. Suitable for both wet and dry fields across seasons.
- Agricultural Benefits and Applications of Hydraulic Disc Harrow
Breaks compacted layers, incorporates crop residues, and levels the field in one pass. Adjustable hydraulic gangs optimize soil mixing, enhance weed control, and reduce compaction, creating a fine seedbed ready for sowing.
- Enhanced Farming Efficiency through Hydraulic Disc Harrow
Hydraulic gang adjustment and transport wheels reduce setup time. Single-pass operation lowers fuel use and labor compared to multiple implements, boosting productivity with coverage up to 3 ha/hr.
- Versatile Crop Applications through Hydraulic Disc Harrow
Suitable for cereals (wheat, rice, barley), cash crops (cotton, sugarcane, maize), pulses (chickpea, lentils), vegetables (potato, tomato), and orchard soil preparation.
- Performance Specifications of Hydraulic Disc Harrow
Operating speeds: 4–6 km/hr. Uniform pressure distribution prevents wheel rutting. Up to 150 mm penetration cuts through residue, while hydraulic gang tilt ensures a smooth, level finish.
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (< 5 acres): FKHDH-20D
- Medium farms (5–25 acres): FKHDH-24D
- Large farms (> 25 acres): FKHDH-28D
Soil-specific Recommendations:
- Light soils: 610 mm disc standard
- Medium soils: 660 mm option for improved residue handling
- Heavy clay: split gangs at wider spacing
Budget Categories:
- Economy: FKHDH-20D basic model
- Mid-range: FKHDH-24D with hydraulic tilt
- Premium: FKHDH-28D heavy-duty variant
ROI analysis highlights savings on fuel, labor, and higher yield potential. Financing schemes and government mechanization subsidies ease purchase costs.
- Maintenance and Care of Hydraulic Disc Harrow
Inspect disc wear and replace when indicators show >10% thickness loss. Grease bearings every 50 hours with NLGI#2. Check hydraulic hoses and frame bolts quarterly. Clean and store dry to prevent corrosion. Pre-operation checklist includes tyre pressure, gang tilt function, and hydraulic connections.
- Longevity Factors of Hydraulic Disc Harrow
Constructed with boron steel notched discs and heat-treated gang rods, this harrow provides high wear resistance. Modular split gangs allow easy disc replacement, ensuring service life beyond five years under normal use.
FAQs – Farmking Hydraulic Disc Harrow
What tractor horsepower is required?
80*–165* HP depending on variant.
What disc types are available and what do they do?
Notched discs in front for residue cutting; plain discs in rear for smoothing.
What is the working width and depth capacity?
2.30–3.10 m width; up to 150 mm depth.
How does it help in seedbed preparation and soil finishing?
Breaks clods, mixes residues, and levels in one pass with hydraulic gang control.
Why is disc quality and tine strength important?
High-quality discs resist wear and ensure uniform soil cutting.
Is it compatible with all tractor brands in India?
Yes; connects via standard drawbar and hydraulic couplers.
How are gang angle and depth controlled?
Hydraulic gang tilt and adjustment for precise angle and depth control.
How does it compare to cultivators and rotavators?
Hydraulic disc harrows excel in residue management and leveling; cultivators/rotavators deliver deeper pulverization.
What maintenance schedule is recommended?
Grease bearings every 50 hours and inspect hydraulics and frame quarterly.
What warranty and after-sales support is available?
12-month warranty with regional service centers and genuine spare parts network.
By comparing specifications, features, and prices across manufacturers, TractorXpert helps farmers select the most affordable harrow implement, improve seedbed quality, reduce tillage operations, and enhance overall farm productivity through efficient soil preparation solutions.
Product General Information
Brand Name:
Farmking
Model Name:
Hydraulic Disc Harrow (Trailed Type)
Implement Type:
Harrow
Category:
Tillage
Compatible Tractor Power:
80* – 165* HP
Engine
Transmission
Implement Type:
Harrow
Category:
Tillage
Power Take off
Dimension & Weight
Hydraulics
Wheels
Cutting Mechanism
Reel
Threshing and Cleaning
Capacity
Other Information
₹ 340000
₹ 1L
₹ 25L
6.5 %
6%
26%
12
12
60
