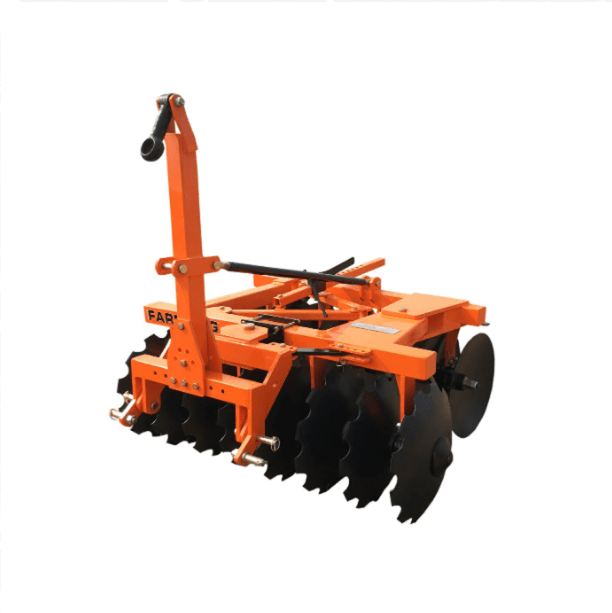

Farmking Compact Disc Harrow (Mounted cum Trailed Type)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
Farmking Compact Disc Harrow price* in India, specifications, working width, depth & disc details.…
- About Product
Farmking Compact Disc Harrow price* in India, specifications, working width, depth & disc details. Find the best tractor harrow implements on TractorXpert.
- Key Specification and Technology – Compact Disc Harrow
| Variant | FKCDH-16D | FKCDH-18D | FKCDH-20D | FKCDH-22D |
| Working Width | 1.912 m (6.3 ft) | 2.128 m (7.0 ft) | 2.345 m (7.7 ft) | 2.562 m (8.4 ft) |
| No. of Discs | 16 | 18 | 20 | 22 |
| Bearing Hubs | 6 | 8 | 8 | 8 |
| Gang Axle | 32 mm solid square rod | 32 mm solid square rod | 32 mm solid square rod | 32 mm solid square rod |
| Underframe Clearance | 470 mm (18.5 in) | 470 mm (18.5 in) | 470 mm (18.5 in) | 470 mm (18.5 in) |
| Disc Diameter | 560 mm / 22 in (optional 610 mm/24 in) | 560 mm / 22 in (optional 610 mm/24 in) | 560 mm / 22 in (optional 610 mm/24 in) | 560 mm / 22 in (optional 610 mm/24 in) |
| Disc Spacing | 228 mm (9 in) | 228 mm (9 in) | 228 mm (9 in) | 228 mm (9 in) |
| Disc Type | Plain / Notched (front gang) | Plain / Notched (front gang) | Plain / Notched (front gang) | Plain / Notched (front gang) |
| Gang Angle Adjustment | Manual / Hydraulic (optional) | Manual / Hydraulic (optional) | Manual / Hydraulic (optional) | Manual / Hydraulic (optional) |
| Working Depth | Up to 150 mm (6 in) | Up to 150 mm (6 in) | Up to 150 mm (6 in) | Up to 150 mm (6 in) |
| Approx. Weight | 718 kg (1,555 lbs) | 825 kg (1,820 lbs) | 890 kg (1,962 lbs) | 975 kg (2,150 lbs) |
| Tractor Power Requirement | 50*–60* HP | 60*–70* HP | 70*–80* HP | 80*–90* HP |
| Mounting Type | Mounted cum Trailed | Mounted cum Trailed | Mounted cum Trailed | Mounted cum Trailed |
| Frame Material & Construction | Heavy-duty angle frame | Heavy-duty angle frame | Heavy-duty angle frame | Heavy-duty angle frame |
- Technical Specifications
Farmking’s compact disc harrow suits light to heavy soils, including clay and rocky terrains, achieving up to 92% field efficiency. At 5 km/hr, it covers 2.5 ha/hr. Heavy-duty bearings with dustproof seals require greasing every 50 hours. Spare parts are available nationwide. A 12-month warranty covers structural and bearing components. Ideal for wet and dry conditions, it adapts to seasonal crop rotations.
- Agricultural Benefits and Applications of Compact Disc Harrow
By combining mounted and trailed designs, this harrow breaks clods, incorporates residues, and levels soil in a single pass. Adjustable gang angles ensure uniform mixing, effective weed control, and reduced compaction, producing a fine seedbed.
- Enhanced Farming Efficiency through Compact Disc Harrow
Single-pass operation cuts labor and reduces tractor draft, boosting fuel efficiency. Coverage rates up to 2.5 ha/hr maximize field productivity, while simple hitching saves setup time.
- Versatile Crop Applications through Compact Disc Harrow
Suitable for cereals (wheat, rice, barley), cash crops (cotton, sugarcane, maize), pulses (chickpea, lentils), vegetables (potato, tomato), and orchard site preparation.
- Performance Specifications of Compact Disc Harrow
Operating speeds: 3–6 km/hr. Uniform ground pressure prevents ruts. Penetration up to 150 mm handles tough residues, and hydraulic gang adjustment delivers a smooth finish.
- Farmer Decision Support
Farm Size Recommendations:
- Small farms (< 5 acres): FKCDH-16D
- Medium farms (5–25 acres): FKCDH-18D or 20D
- Large farms (> 25 acres): FKCDH-22D
Soil-specific Recommendations:
- Light soils: plain discs
- Medium soils: notched discs for enhanced cutting
- Heavy clay: larger 610 mm discs with wider spacing
Budget Categories:
- Economy: FKCDH-16D basic model
- Mid-range: FKCDH-18D/20D with hydraulic adjustment
- Premium: FKCDH-22D heavy-duty variant
ROI guidance highlights savings on fuel, labor, and increased yield. Financing schemes and government mechanization subsidies support purchase decisions.
- Maintenance and Care of Compact Disc Harrow
Sharpen or replace discs when wear indicators show. Grease bearings every 50 hours with NLGI#2 grease. Inspect and tighten frame bolts, apply rust inhibitors before storage, and check disc alignment and wheel pressure before operation.
- Longevity Factors of Compact Disc Harrow
Built with boron steel discs and heat-treated gang rods, it offers superior wear resistance. Modular assemblies allow quick replacement, ensuring service life beyond five years under normal use.
FAQs – Farmking Compact Disc Harrow
What tractor horsepower is required?
50*–90* HP depending on variant.
What disc types are available and what do they do?
Plain discs for smooth finishing; notched discs for residue cutting.
What is the working width and depth?
1.912–2.562 m width; up to 150 mm depth.
How does it aid seedbed preparation?
Breaks clods, levels soil, mixes residues in one pass.
Why is disc quality important?
Durable discs ensure uniform cutting and reduce breakage.
Is it compatible with all tractor brands?
Yes; fits standard three-point hitch and trailed drawbar.
How are gang angle and depth controlled?
Manual or hydraulic angle adjustment and hydraulic depth control ensure precision.
How does it compare to cultivators and rotavators?
Disc harrows excel in residue management and leveling; cultivators and rotavators focus on deeper soil pulverization.
What maintenance schedule is recommended?
Grease bearings every 50 hours and perform quarterly inspections.
What warranty and service support is available?
12-month manufacturer warranty with regional service centers and genuine spare parts network.
By comparing specifications, features, and prices across manufacturers, TractorXpert helps farmers choose the most affordable harrow implement, improve seedbed quality, reduce tillage operations, and enhance overall farm productivity through efficient soil preparation solutions.
Product General Information
Brand Name:
Farmking
Model Name:
Compact Disc Harrow (Mounted cum Trailed Type)
Implement Type:
Harrow
Category:
Tillage
Compatible Tractor Power:
50* – 90* HP
Engine
Transmission
Implement Type:
Harrow
Category:
Tillage
Power Take off
Dimension & Weight
Hydraulics
Wheels
Cutting Mechanism
Reel
Threshing and Cleaning
Capacity
Other Information
₹ 340000
₹ 1L
₹ 25L
6.5 %
6%
26%
12
12
60
