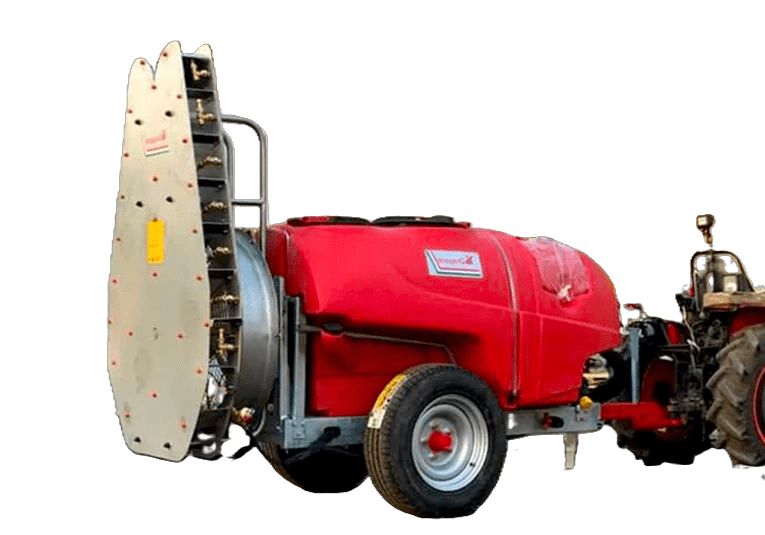

Dragone Tower Sprayer (800 L, 1000 L, 1500 L, 2000 L)
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
| Attribute | Details |
| Brand | Dragone |
| Model Name | …
- About Product
| Attribute | Details |
| Brand | Dragone |
| Model Name | Tower Sprayer (800 L, 1000 L, 1500 L, 2000 L) |
| Implement Type | Trailed Sprayer / Air Blast Sprayer |
| Category | Crop Protection / Plant Protection |
| Compatible Tractor Power | 24–60 HP depending on capacity |
| Price Range* | Contact TractorXpert for price* |
- Key Specification and Technology – Dragone Tower Sprayer
| Specification | 800 L Variant | 1000 L Variant | 1500 L Variant | 2000 L Variant |
| Tank Capacity | 800 L | 1000 L | 1500 L | 2000 L |
| Fan | Axial fan with adjustable stainless-steel blades | Same | Same | Same |
| Chassis | Hot-dip galvanized | Hot-dip galvanized | Hot-dip galvanized | Hot-dip galvanized |
| Pump Type | Imported Dragone pump | Imported Dragone pump | Imported Dragone pump | Imported Dragone pump |
| Mounting Type | Trailed | Trailed | Trailed | Trailed |
| Drive System | PTO driven | PTO driven | PTO driven | PTO driven |
| PTO Speed Requirement | 540 RPM standard | 540 RPM standard | 540 RPM standard | 540 RPM standard |
| Tank Material | Stainless-steel body | Stainless-steel body | Stainless-steel body | Stainless-steel body |
| Dimensions (L × W × H) | Available on request | Available on request | Available on request | Available on request |
| Weight (Unladen) | Available on request | Available on request | Available on request | Available on request |
| Tractor Power Requirement | 24 HP and above | 30 HP and above | 40 HP and above | 60 HP and above |
- Technical Specifications – Dragone Tower Sprayer
| Parameter | Specification |
| Application Rate Capacity | 100–500 L/ha |
| Field Coverage Efficiency | Up to 6 ha/hr |
| Agitation System | Internal mechanical stirrer |
| Filtration System | Suction filter |
| Control System | Manual valve |
| Operating Speed Range | 2–8 km/hr |
| Chemical Compatibility | Pesticides, herbicides, fungicides, liquid fertilizers |
| Weather Suitability | Wind ≤ 5 m/s, temperature 5–40 °C |
| Maintenance Intervals | Every 100 hrs or season |
| Spare Parts Availability | Authorized Dragone dealers |
| Warranty & Service Support | 1 year manufacturer warranty, dealer support |
- Agricultural Benefits and Applications
This sprayer ensures uniform canopy coverage and deep penetration for effective pest control, disease management, and weed suppression in orchards and field crops. The dual-tower design minimizes drift and maximizes droplet deposition.
- Enhanced Farming Efficiency
Large-capacity tanks and powerful axial fans deliver rapid coverage, reducing labor and downtime. Precise manual controls cut chemical waste for cost savings and environmental protection.
- Versatile Crop Applications
Field Crops: wheat, rice, maize, soybean
Horticultural Crops: grapes, pomegranate, mango, citrus
Cash Crops: cotton, sugarcane, groundnut
Special Applications: foliar nutrition, growth regulators, defoliants
- Performance Specifications
Designed for 95% spray uniformity and over 90% chemical utilization, with operating cost below ₹280*/ha. The adjustable blade fan achieves symmetrical spray distribution on both sides.
- Farmer Decision Support
Farm Size Recommendations
- Small (< 5 acres): 800 L units
- Medium (5–25 acres): 1000–1500 L models
- Large (> 25 acres): 2000 L sprayers
Budget Categories
- Economy: basic manual sprayers
- Mid-Range: single-tower airblast
- Premium: multi-capacity tower units
ROI & Financing
Payback within one season through chemical savings and yield protection. Government subsidies available under FMTIC.
- Maintenance and Care
- Pump: follow dealer schedule; inspect seals seasonally
- Nozzles: clean weekly; replace worn tips
- Tank: flush after use; clean mixing circuits
- Chassis & Filters: inspect quarterly; clean filters monthly
- Storage: drain and store indoors off-season
- Pre-Operation Checklist: verify PTO, hoses, towers, and controls
- Longevity Factors
Imported stainless-steel body, galvanized chassis, and high-grade components resist corrosion. Robust design with accessible spares ensures an 8–12 year service life.
FAQs
What tractor horsepower is required for Dragone Tower Sprayer?
24–60 HP depending on tank capacity
What types of sprayers are available and their applications?
Tower airblast sprayers for orchards and field crops ensure deep canopy coverage
What is the tank capacity and boom width?
Capacities: 800, 1000, 1500, 2000 L; boom width: not applicable (tower design)
How does the Tower Sprayer help in crop protection?
Delivers uniform droplet distribution and deep penetration for effective pest and disease control
Why is pump quality and adjustable blade type important?
A reliable pump ensures consistent airflow; adjustable stainless-steel blades guarantee precise spray patterns
Is the sprayer compatible with all tractors in India?
Yes, fits standard PTO shafts and three-point hitches on 24–60 HP tractors
What maintenance schedule is recommended?
Seasonal pump checks, weekly nozzle cleaning, quarterly chassis and filter inspections
What warranty and support are available?
1 year manufacturer warranty with authorized dealer support
TractorXpert helps farmers choose the right sprayer implement by comparing models, prices, features, and benefits from different manufacturers, enabling cost savings, enhanced crop protection efficiency, reduced chemical wastage, and uniform coverage for maximum yield and profitability.
