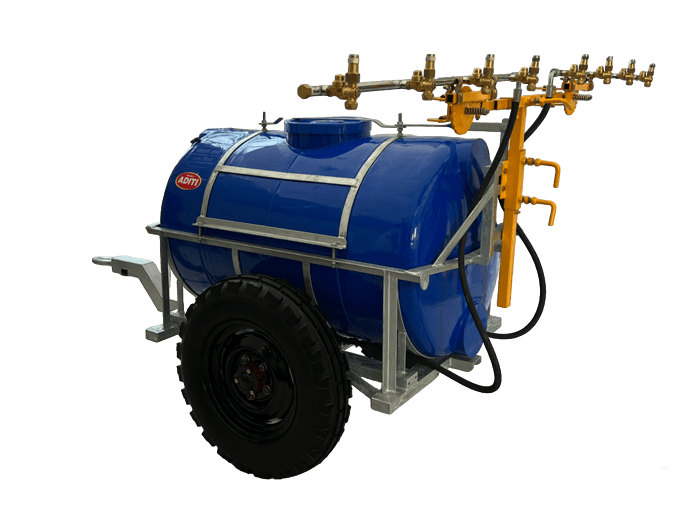

Boraste Agro (ADITI) Trailed Boom Sprayer 500–1000 L
{{ galleryProps.activeIndex + 1 }}/1
Description
- About Product
| Attribute | Details |
| Brand | Boraste Agro (ADITI) |
- About Product
| Attribute | Details |
| Brand | Boraste Agro (ADITI) |
| Model Name | Trailed Boom Sprayer 500–1000 L |
| Implement Type | Trailed Boom Sprayer |
| Category | Crop Protection / Plant Protection |
| Compatible Tractor Power | 30 HP and above |
| Price Range* | ₹1,80,000* to ₹3,50,000* |
- Key Specification and Technology – Boraste ADITI Trailed Boom Sprayer
| Specification | 500 L Variant | 600 L Variant | 1000 L Variant |
| Sprayer Type | Trailed Boom Sprayer | Trailed Boom Sprayer | Trailed Boom Sprayer |
| Tank Capacity | 500 L | 600 L | 1000 L |
| Pump Type | Piston Pump (Aspee BILI) | Piston Pump | High-Pressure Piston Pump |
| Pump Capacity | 45–55 LPM | 50–60 LPM | 60–75 LPM |
| Max Working Pressure | 25–35 bar | 30–40 bar | 30–40 bar |
| Boom Width | 12 m (40 feet) | 12–15 m (40–50 feet) | 15–18 m (50–60 feet) |
| Number of Nozzles | 12–16 | 16–20 | 20–24 |
| Nozzle Spacing | 50 cm standard | 50 cm standard | 50 cm standard |
| Nozzle Types | Italian M-82 Brass / Flat Fan / Hollow Cone | Same | Same |
| Overall Dimensions (L×W×H) | 2,200 × 1,800 × 1,600 mm | 2,400 × 2,000 × 1,700 mm | 2,800 × 2,200 × 1,800 mm |
| Weight (Unladen) | 250–300 kg | 300–350 kg | 400–500 kg |
| Tractor Power Requirement | 30 HP and above | 35 HP and above | 40 HP and above |
| Mounting Type | Trailed (2-Wheel) | Trailed (2-Wheel) | Trailed (2-Wheel) |
| Drive System | PTO Driven | PTO Driven | PTO Driven |
| PTO Speed Requirement | 540 RPM Standard | 540 RPM Standard | 540 RPM Standard |
| Tank Material | Heavy-Duty HDPE | Heavy-Duty HDPE | Heavy-Duty HDPE |
| Chassis | Hot-Dip Galvanized | Hot-Dip Galvanized | Hot-Dip Galvanized |
| Wheels | Tubeless Tyres (2 Wheels) | Tubeless Tyres | Tubeless Tyres |
- Technical Specifications – Boraste ADITI Trailed Boom Sprayer
| Parameter | Specification |
| Application Rate Capacity | 150–450 L/ha |
| Field Coverage Efficiency | Up to 12–15 ha/day |
| Boom Height Adjustment Range | 0.5–2.0 m (Manual/Hydraulic) |
| Pump Working Pressure | 4–10 bar Recommended |
| Agitation System | Jet Agitation / Mechanical Stirrer |
| Filtration System | Suction Filter, Line Filter, Nozzle Filters |
| Control System | Manual 6-Way Valve Control System |
| Operating Speed Range | 5–10 km/hr |
| Chemical Compatibility | Pesticides, Herbicides, Fungicides, Liquid Fertilizers |
| Weather Suitability | Wind ≤ 7 m/s, Temperature 5–40 °C |
| Maintenance Intervals | Every 100 hrs or season |
| Spare Parts Availability | Pan-India Dealer Network |
| Warranty & Service Support | 1 Year Manufacturer Warranty, Doorstep Service |
- Agricultural Benefits and Applications of Boraste ADITI Trailed Boom Sprayer
The Boraste ADITI Trailed Boom Sprayer delivers wide-area coverage and uniform spray distribution for effective pest control, disease prevention, and weed management across extensive field crops. The trailed design with independent wheels provides superior maneuverability and reduced soil compaction, while precision nozzle configuration ensures chemical savings and reduced drift.
- Enhanced Farming Efficiency through Boraste ADITI Trailed Boom Sprayer
Large-capacity tanks and wide boom coverage enable rapid field application, covering up to 15 hectares daily. The trailed design reduces tractor load and improves fuel efficiency. Labor cost reduction of 40% and chemical cost savings of 20% through precise application make this sprayer highly productive for large-scale farming operations.
- Versatile Crop Applications through Boraste ADITI Trailed Boom Sprayer
Field Crops: Wheat, rice, maize, soybean, pulses
Horticultural Crops: Vegetable cultivation, plantation crops
Cash Crops: Cotton, sugarcane, sunflower, groundnut
Cereal Crops: Wheat, barley, oats, millets
Special Applications: Pre-emergence herbicides, post-emergence weed control, foliar nutrition, growth regulators, defoliation
- Performance Specifications of Boraste ADITI Trailed Boom Sprayer
Achieves 94% spray uniformity with adjustable boom height and Italian brass nozzles. 88% chemical utilization efficiency minimizes wastage. Advanced drift control capabilities ensure targeted application even at higher operating speeds. Operating cost remains under ₹150*/ha with efficient pump and wide boom coverage.
- Farmer Decision Support
Farm Size Recommendations
- Small farms (under 5 acres): Not recommended—consider mounted models
- Medium farms (5–25 acres): 500–600 L trailed boom sprayer
- Large farms (above 25 acres): 1000 L trailed boom sprayer—maximum productivity
Crop-Specific Recommendations
- Field Crops (Cotton, cereals, pulses): Use 15–18 m boom with 20–24 nozzles
- Row Crops (Sugarcane): Adjust boom height to 1.5–2 m
- Cash Crops: Flat-fan nozzles for herbicide application; hollow-cone for fungicide
- Large Acreage: 1000 L capacity with 60-foot boom for maximum efficiency
Budget-Wise Categorization
- Economy Models: 500 L trailed sprayer with manual controls—cost-effective
- Mid-Range Options: 600 L with hydraulic boom adjustment—balanced features
- Premium Models: 1000 L with wide boom, high-pressure pump—maximum productivity
ROI & Financing
Payback within one to two seasons through labor savings (40%), chemical efficiency (20% savings), and increased coverage capacity. Indian Government subsidies available under agricultural mechanization schemes in most states (subsidy ranges from 25% to 50% depending on state and farmer category).
- Maintenance and Care of Boraste ADITI Trailed Boom Sprayer
- Pump Maintenance: Inspect piston seals every 50 hrs; replace worn components annually; check oil levels regularly
- Nozzle Care: Clean Italian brass nozzles after each use; calibrate monthly; replace blocked or worn nozzles immediately
- Tank Cleaning: Flush tank thoroughly after each application; use cleaning agents for stubborn residues
- Boom Maintenance: Inspect boom structural integrity quarterly; check hydraulic boom lift system; lubricate pivot points
- Wheels & Chassis: Check tyre pressure regularly; inspect tubeless tyres for wear; lubricate wheel bearings
- Filtration System: Clean suction and line filters weekly; replace when damaged
- Chassis: Inspect hot-dip galvanized chassis for structural integrity; address any corrosion
- Seasonal Storage: Drain tank completely; clean all components; store in dry, covered area; protect tyres from sunlight
- Pre-Operation Checklist: Verify PTO connection, hoses, nozzle spray patterns, pressure settings, boom stability, tyre pressure
- Calibration: Perform spray calibration every season to ensure accurate application rates
- Longevity Factors of Boraste ADITI Trailed Boom Sprayer
Heavy-duty HDPE tank resists chemical corrosion and UV degradation. Hot-dip galvanized chassis provides superior corrosion protection and structural durability for 10+ years. Tubeless tyres reduce maintenance and ensure smooth operation. Italian brass nozzles resist wear and ensure consistent spray patterns. Replaceable pump components and accessible spare parts enhance serviceability. Expected service life of 10–12 years with proper maintenance and care.
FAQs
What tractor horsepower is required for Boraste ADITI Trailed Boom Sprayer?
30 HP and above for 500 L model; 35 HP and above for 600 L model; 40 HP and above for 1000 L model.
What types of sprayers are available in Boraste ADITI Trailed Boom Sprayer, and what are their applications?
Trailed boom sprayers available in 500 L, 600 L, and 1000 L capacities for large-scale field crop spraying including cotton, cereals, pulses, soybean, sugarcane, and cash crops for pest control, disease management, and weed suppression.
What is the tank capacity and boom width of the Boraste ADITI Trailed Boom Sprayer?
Tank capacities: 500 L, 600 L, 1000 L; Boom width: 12–18 m (40–60 feet) depending on model.
How does Boraste ADITI Trailed Boom Sprayer help in crop protection and pest management?
Delivers wide-area uniform spray coverage with adjustable boom height (0.5–2 m) and 12–24 Italian brass nozzles, ensuring effective pest control, disease prevention, and weed management while reducing chemical wastage by 20%.
Why is pump quality and nozzle type important in Boraste ADITI Trailed Boom Sprayer?
High-quality Aspee BILI piston pump maintains consistent high pressure (30–40 bar) for uniform application; Italian M-82 brass nozzles ensure precise spray patterns, droplet size control, and wear resistance for long service life.
Is Boraste ADITI Trailed Boom Sprayer compatible with all tractor brands and models in India?
Yes, fits standard PTO shafts (540 RPM) on tractors ≥ 30 HP, compatible with all major brands including Mahindra, John Deere, Sonalika, Swaraj, Farmtrac, New Holland, and others.
What about boom height adjustment and spray pressure control in Boraste ADITI Trailed Boom Sprayer?
Manual or hydraulic boom height adjustment from 0.5–2 m depending on model; 6-way manual valve control system for spray pressure adjustment (4–10 bar operating range); independent wheel design ensures stable boom operation.
How does Boraste ADITI Trailed Boom Sprayer compare to other crop protection methods?
Offers fastest coverage (12–15 ha/day), 40% labor cost reduction, 20% chemical savings, wide-area uniform application, and reduced soil compaction compared to mounted sprayers or manual methods.
What maintenance schedule should be followed for Boraste ADITI Trailed Boom Sprayer?
Pump seals inspection every 50 hrs, nozzle cleaning after each use, filter cleaning weekly, boom and chassis inspection quarterly, tyre pressure check weekly, annual component replacement as needed.
What warranty and after-sales service support is available for Boraste ADITI Trailed Boom Sprayer?
1 year manufacturer warranty with PAN India service network providing doorstep installation, after-sales support, and readily available spare parts through authorized dealers.
TractorXpert helps farmers choose the right sprayer implement by comparing models, prices, features, and benefits from different manufacturers, helping them save money, improve crop protection efficiency, reduce chemical wastage, and enhance overall farm productivity through precise and effective spraying solutions that enable farmers to protect their crops from pests, diseases, and weeds while optimizing chemical usage and ensuring uniform coverage across their fields for maximum agricultural yield and profitability.
Product General Information
Brand Name:
Boraste Agro (ADITI)
Model Name:
Trailed Boom Sprayer 500–1000 L
Implement Type:
Sprayer
Category:
Crop Protection
Compatible Tractor Power:
30 HP and above
Engine
Transmission
Implement Type:
Sprayer
Category:
Crop Protection
Power Take off
Dimension & Weight
Hydraulics
Wheels
Cutting Mechanism
Reel
Threshing and Cleaning
Capacity
Other Information
₹ 340000
₹ 1L
₹ 25L
6.5 %
6%
26%
12
12
60
