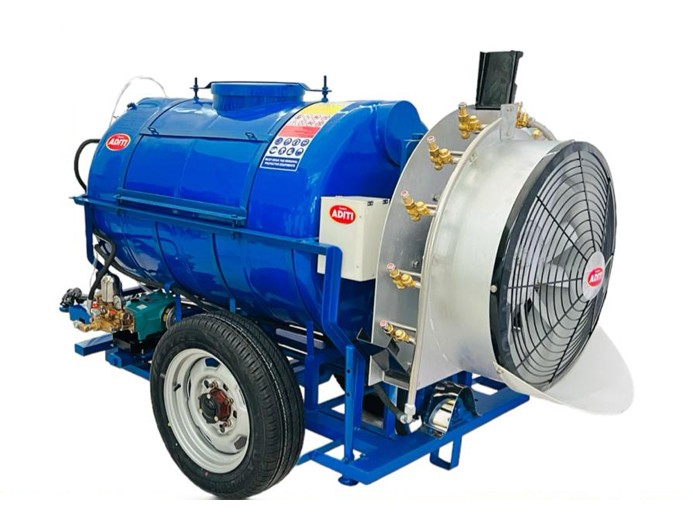

Boraste Agro (ADITI) STD Series 600L & 1000L (R-Type), BL-R-6A-GIC
{{ galleryProps.activeIndex + 1 }}/5
Description
- About Product
| Attribute | Details |
| Brand | Boraste Agro (ADITI) |
- About Product
| Attribute | Details |
| Brand | Boraste Agro (ADITI) |
| Model Names | STD Series 600L & 1000L (R-Type), BL-R-6A-GIC |
| Implement Type | Air Blast Sprayer / Orchard Sprayer |
| Category | Crop Protection / Plant Protection |
| Compatible Tractor Power | 35–50 HP and above |
| Price Range* | ₹2,50,000* to ₹3,75,000* |
- Key Specification and Technology – STD Series 600L & 1000L (R-Type)
| Specification | 600L R-RAS | 600L R-FAS | 1000L R-RAS | 1000L R-FAS | BL-R-6A-GIC |
| Sprayer Type | Air Assisted (Rear Air Suction) | Air Assisted (Front Air Suction) | Air Assisted (Rear Air Suction) | Air Assisted (Front Air Suction) | Air Carrier/Assisted |
| Tank Capacity | 600 L | 600 L | 1000 L | 1000 L | 600 L |
| Pump Type | Diaphragm Pump | Diaphragm Pump | Diaphragm Pump | Diaphragm Pump | Diaphragm Pump |
| Pump Capacity | 80–90 LPM | 85–95 LPM | 100–110 LPM | 105–120 LPM | 80–90 LPM |
| Max Working Pressure | 30–40 bar | 30–40 bar | 30–40 bar | 30–40 bar | 30–40 bar |
| Fan Size | 800 mm Round | 800 mm Round | 1000 mm Round | 1000 mm Round | 800 mm Round |
| Fan Type | R-Type Round Fan with Adjustable Blades | Same | Same | Same | Aluminium Adjustable Fan |
| Number of Nozzles | 16–20 | 18–22 | 22–28 | 24–30 | 10 Blades |
| Nozzle Spacing | 50 cm standard | 50 cm standard | 50 cm standard | 50 cm standard | 50 cm standard |
| Nozzle Types | Italian Braglia Brass | Same | Same | Same | Brass Tips |
| Air Output | 30–35 m/s | 30–35 m/s | 35–40 m/s | 35–40 m/s | 30–35 m/s |
| Dimensions (L×W×H) | 1,800 × 1,500 × 1,700 mm | Same | 2,200 × 1,800 × 1,800 mm | Same | 1,800 × 1,500 × 1,700 mm |
| Weight (Unladen) | 320–360 kg | 340–380 kg | 450–500 kg | 470–520 kg | 320–360 kg |
| Tractor Power Requirement | 35 HP and above | 40 HP and above | 45 HP and above | 50 HP and above | 35 HP and above |
| Mounting Type | 3-Point Linkage | 3-Point Linkage | 3-Point Linkage | 3-Point Linkage | 3-Point Linkage |
| Drive System | PTO Driven | PTO Driven | PTO Driven | PTO Driven | PTO Driven |
| PTO Speed Requirement | 540 RPM | 540 RPM | 540 RPM | 540 RPM | 540 RPM |
| Tank Material | Heavy-Duty LLDPE | Same | Heavy-Duty LLDPE | Same | Heavy-Duty LLDPE |
| Chassis | Hot-Dip Galvanized | Same | Hot-Dip Galvanized | Same | Galvanized |
- Technical Specifications – STD Series 600L & 1000L (R-Type)
| Parameter | Specification |
| Application Rate Capacity | 150–500 L/ha |
| Field Coverage Efficiency | Up to 10–15 ha/day |
| Fan Height Adjustment | Height Adjustable Fan Unit |
| Pump Working Pressure | 4–10 bar Recommended |
| Agitation System | Italian Braglia Brass Agitating Device |
| Filtration System | M120 Suction Screen Filter, Fine Filtration Top Lid Screen |
| Control System | 4-Way Stainless Steel Controller with Manual Ball Valves |
| Operating Speed Range | 3–8 km/hr |
| Chemical Compatibility | Pesticides, Herbicides, Fungicides, Liquid Fertilizers |
| Weather Suitability | Wind ≤ 7 m/s, Temperature 5–40 °C |
| Maintenance Intervals | Every 100 hrs or season |
| Spare Parts Availability | Pan-India Dealer Network |
| Warranty & Service Support | 1 Year Manufacturer Warranty, Doorstep Service |
| Fuel Consumption | Minimum in Segment |
- Agricultural Benefits and Applications of STD Series 600L & 1000L
The Boraste ADITI STD Series R-Type models with round fans deliver superior canopy penetration and 360-degree air distribution for effective pest control, disease prevention, and weed management in large commercial orchards. High-velocity air stream (30–40 m/s) ensures maximum coverage with reduced chemical wastage and advanced drift control.
- Enhanced Farming Efficiency through STD Series 600L & 1000L
These heavy-duty models cover up to 10–15 hectares daily, offering 40% labor cost reduction and exceptional time savings. Large tank capacities (600L & 1000L) minimize refilling frequency for extended operation. R-Type round fan design provides balanced airflow on all sides. Chemical cost savings of 20–25% through precision application make these sprayers ideal for commercial farming.
- Versatile Crop Applications through STD Series 600L & 1000L
Horticultural Crops: Grapes, pomegranates, oranges, mangoes, guava, custard apples, lychees, apples
Plantation Crops: Coconut, arecanut, tea, coffee, rubber
Large Commercial Orchards: Citrus plantations, vineyard operations, mango orchards
Special Applications: Fungicide application, GA and CPPU spraying, pest control in dense canopy crops, growth regulators, foliar nutrition, disease management in tall trees
- Performance Specifications of STD Series 600L & 1000L
Achieves 95–97% spray uniformity with R-Type round fan and Italian brass nozzles. 90% chemical utilization efficiency minimizes wastage. Air output of 30–40 m/s ensures deep canopy penetration and 360-degree coverage. Operating cost remains under ₹160*/ha with minimum fuel consumption and uniform coverage across large areas.
- Farmer Decision Support
Farm Size Recommendations
- Small farms (under 5 acres): 200–300L models recommended
- Medium farms (5–25 acres): 500L or 600L models
- Large farms (above 25 acres): 600L or 1000L R-Type—maximum productivity
Crop-Specific Recommendations
- Grapes & Pomegranates: 600L R-FAS with 18–22 nozzles
- Mangoes & Citrus (Tall Trees): 1000L R-Type with large round fan
- Dense Commercial Orchards: 1000L variants for extended coverage
- Plantations with Wide Row Spacing: R-Type round fan for 360-degree coverage
Budget-Wise Categorization
- Economy Models: 600L R-RAS—rear suction, cost-effective
- Mid-Range Options: 600L R-FAS or BL-R-6A-GIC—front suction, enhanced coverage
- Premium Models: 1000L R-FAS—maximum capacity, air output, and productivity
ROI & Financing
Payback within one season through labor savings (40%), chemical efficiency (20–25% savings), and minimal refilling downtime. FMTIC Tested & Approved quality. Central Government subsidies available under agricultural mechanization schemes (subsidy ranges from 25% to 50% depending on state and farmer category).
- Maintenance and Care of STD Series 600L & 1000L
- Pump Maintenance: Inspect diaphragm every 50 hrs; replace worn components annually; check oil levels regularly
- Nozzle Care: Clean Italian brass nozzles after each use; calibrate monthly; replace blocked or worn nozzles
- Fan Maintenance: Check round fan blades for damage; adjust blade angles as needed; lubricate gearbox
- Tank Cleaning: Flush large tank thoroughly after each application; use fine filtration screen
- Air Unit: Check air flow direction; adjust deflectors for uniform 360-degree coverage
- Filtration System: Clean M120 suction screen filter and top lid screen after every use
- Gearbox: Check gearbox oil levels; lubricate moving parts
- Regular Maintenance: Clean, oil, and grease components every 8–15 days as recommended
- Seasonal Storage: Drain tank completely; clean all components; store in dry, covered area
- Pre-Operation Checklist: Verify PTO connection, belt tension, fan operation, nozzle spray patterns, pressure settings
- Longevity Factors of STD Series 600L & 1000L
Heavy-duty LLDPE tank (600L & 1000L) resists chemical corrosion and UV degradation. Hot-dip galvanized chassis provides superior corrosion protection for 10+ years. Italian Braglia brass components ensure maximum durability. R-Type round fan with adjustable blades and robust construction ensures longevity. FMTIC tested and approved quality standards guarantee a 10–12 year service life with proper maintenance.
FAQs
What tractor horsepower is required for STD Series 600L & 1000L?
35 HP and above for 600L R-RAS; 40 HP and above for 600L R-FAS; 45 HP and above for 1000L R-RAS; 50 HP and above for 1000L R-FAS.
What types of sprayers are available in STD Series 600L & 1000L, and what are their applications?
R-Type air-assisted sprayers with round fans available in 600L (RAS, FAS) and 1000L (RAS, FAS) variants for large commercial orchard and plantation spraying including grapes, pomegranates, mangoes, citrus, coconut, and other horticultural crops for pest control, disease management, and fungicide application.
What is the tank capacity and fan size of the STD Series 600L & 1000L sprayer?
Tank capacities: 600 L and 1000 L; Fan sizes: 800 mm (600L) and 1000 mm (1000L) R-Type round fans with adjustable blades.
How does STD Series 600L & 1000L sprayer help in crop protection and pest management?
Delivers 360-degree air distribution with high air output (30–40 m/s) and 16–30 Italian brass nozzles, ensuring complete canopy penetration, uniform coverage on all sides, and effective pest control, disease prevention, and fungicide application with maximum accuracy.
Why is pump quality and nozzle type important in STD Series 600L & 1000L sprayer?
High-capacity diaphragm pump (80–120 LPM) maintains consistent pressure (30–40 bar) for uniform application across large areas; Italian Braglia brass nozzles and agitating device ensure precise spray patterns, wear resistance, and proper chemical mixing for extended service life.
Is STD Series 600L & 1000L sprayer compatible with all tractor brands and models in India?
Yes, fits standard 3-point linkage and PTO shafts (540 RPM) on tractors ≥ 35 HP, compatible with all major brands including Mahindra, John Deere, Sonalika, Swaraj, Farmtrac, New Holland, and others.
What about fan height adjustment and spray pressure control in STD Series 600L & 1000L sprayer?
Height-adjustable round fan unit allows vertical positioning; adjustable round fan blades enable airflow control for 360-degree coverage; 4-way stainless steel controller with manual ball valves provides spray pressure adjustment (4–10 bar operating range); air flow direction adjustable using deflectors.
How does STD Series 600L & 1000L sprayer compare to other crop protection methods?
Offers maximum orchard coverage (10–15 ha/day), 40% labor cost reduction, 20–25% chemical savings, 360-degree uniform coverage, minimal refilling downtime, and minimum fuel consumption compared to smaller capacity sprayers or manual methods.
What maintenance schedule should be followed for STD Series 600L & 1000L sprayer?
Cleaning, oiling, and greasing every 8–15 days; diaphragm inspection every 50 hrs; nozzle and filter cleaning after each use; fan and gearbox inspection quarterly; annual component replacement as needed.
What warranty and after-sales service support is available for STD Series 600L & 1000L?
1 year manufacturer warranty with PAN India service network providing doorstep installation and after-sales support; FMTIC tested and approved quality; spare parts readily available through authorized dealers; customization available subject to technical details and extra cost.
TractorXpert helps farmers choose the right sprayer implement by comparing models, prices, features, and benefits from different manufacturers, helping them save money, improve crop protection efficiency, reduce chemical wastage, and enhance overall farm productivity through precise and effective spraying solutions that enable farmers to protect their crops from pests, diseases, and weeds while optimizing chemical usage and ensuring uniform coverage across their fields for maximum agricultural yield and profitability.
