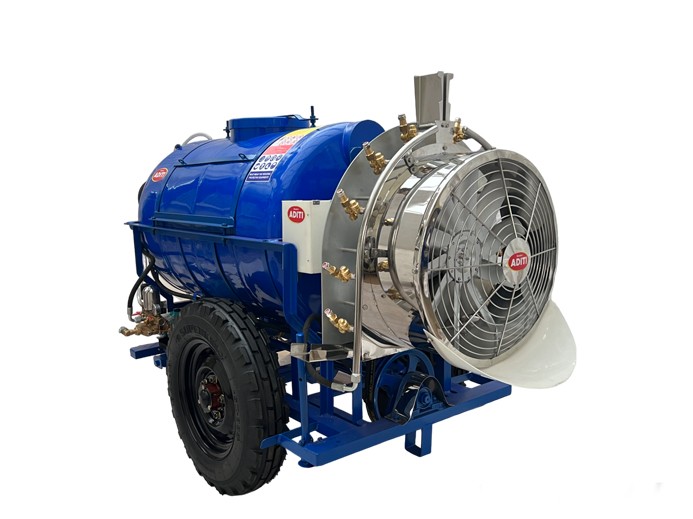

Boraste Agro (ADITI) STD Series 500L & 600L
{{ galleryProps.activeIndex + 1 }}/5
Description
- About Product
| Attribute | Details |
| Brand | Boraste Agro (ADITI) |
- About Product
| Attribute | Details |
| Brand | Boraste Agro (ADITI) |
| Model Names | STD Series 500L & 600L |
| Implement Type | Air Blast Sprayer / Orchard Sprayer |
| Category | Crop Protection / Plant Protection |
| Compatible Tractor Power | 30–40 HP and above |
| Price Range* | ₹2,00,000* to ₹2,75,000* |
- Key Specification and Technology – STD Series 500L & 600L
| Specification | 500L F-RAS | 500L F-FAS | 500L R-RAS | 600L F-RAS | 600L F-FAS |
| Sprayer Type | Air Assisted (Rear Air Suction) | Air Assisted (Front Air Suction) | Air Assisted (Rear Air Suction) | Air Assisted (Rear Air Suction) | Air Assisted (Front Air Suction) |
| Tank Capacity | 500 L | 500 L | 500 L | 600 L | 600 L |
| Pump Type | Diaphragm Pump | Diaphragm Pump | Diaphragm Pump | Diaphragm Pump | Diaphragm Pump |
| Pump Capacity | 70–80 LPM | 75–85 LPM | 70–80 LPM | 75–85 LPM | 80–90 LPM |
| Max Working Pressure | 30–40 bar | 30–40 bar | 30–40 bar | 30–40 bar | 30–40 bar |
| Fan Size | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
| Fan Type | F-Type: Adjustable Aluminium Fan / R-Type: Round Fan | Same | Same | Adjustable Aluminium Axial Fan | Same |
| Number of Nozzles | 12–16 | 14–18 | 12–16 | 14–18 | 16–20 |
| Nozzle Spacing | 50 cm standard | 50 cm standard | 50 cm standard | 50 cm standard | 50 cm standard |
| Nozzle Types | Italian Braglia Brass | Same | Same | Same | Same |
| Air Output | 28–32 m/s | 28–35 m/s | 28–32 m/s | 28–35 m/s | 30–35 m/s |
| Dimensions (L×W×H) | 1,700 × 1,400 × 1,600 mm | Same | Same | 1,800 × 1,500 × 1,600 mm | Same |
| Weight (Unladen) | 280–320 kg | 300–340 kg | 280–320 kg | 300–350 kg | 320–370 kg |
| Tractor Power Requirement | 30 HP and above | 35 HP and above | 30 HP and above | 35 HP and above | 40 HP and above |
| Mounting Type | 3-Point Linkage | 3-Point Linkage | 3-Point Linkage | 3-Point Linkage | 3-Point Linkage |
| Drive System | PTO Driven | PTO Driven | PTO Driven | PTO Driven | PTO Driven |
| PTO Speed Requirement | 540 RPM | 540 RPM | 540 RPM | 540 RPM | 540 RPM |
| Tank Material | Heavy-Duty LLDPE | Same | Same | Heavy-Duty LLDPE | Same |
| Chassis | Hot-Dip Galvanized / Spray Painted | Same | Same | Hot-Dip Galvanized | Same |
- Technical Specifications – STD Series 500L & 600L
| Parameter | Specification |
| Application Rate Capacity | 150–500 L/ha |
| Field Coverage Efficiency | Up to 8–10 ha/day |
| Fan Height Adjustment | Height Adjustable Fan Unit |
| Pump Working Pressure | 4–10 bar Recommended |
| Agitation System | Italian Braglia Brass Agitating Device |
| Filtration System | M120 Suction Screen Filter, Fine Filtration Top Lid Screen |
| Control System | 4-Way Stainless Steel Controller with Manual Ball Valves |
| Operating Speed Range | 3–8 km/hr |
| Chemical Compatibility | Pesticides, Herbicides, Fungicides, Liquid Fertilizers |
| Weather Suitability | Wind ≤ 7 m/s, Temperature 5–40 °C |
| Maintenance Intervals | Every 100 hrs or season |
| Spare Parts Availability | Pan-India Dealer Network |
| Warranty & Service Support | 1 Year Manufacturer Warranty, Doorstep Service |
| Fuel Consumption | Minimum in Segment |
- Agricultural Benefits and Applications of STD Series 500L & 600L
The Boraste ADITI STD Series 500L & 600L delivers superior canopy penetration and balanced air distribution for effective pest control, disease prevention, and weed management in medium to large orchards. High-velocity air stream (28–35 m/s) ensures deep coverage with reduced chemical wastage and advanced drift control.
- Enhanced Farming Efficiency through STD Series 500L & 600L
These models cover up to 8–10 hectares daily, offering 35% labor cost reduction and significant time savings. Large tank capacities reduce refilling frequency. Adjustable aluminium axial fan minimizes tractor load while maximizing air output. Chemical cost savings of 20% through precision application make these sprayers highly efficient for commercial orchard operations.
- Versatile Crop Applications through STD Series 500L & 600L
Horticultural Crops: Grapes, pomegranates, oranges, mangoes, guava, custard apples, lychees, apples
Plantation Crops: Coconut, arecanut, tea, coffee
Large Orchard Gardens: Citrus orchards, vineyard spraying, mango orchards
Special Applications: Fungicide application, GA and CPPU spraying with special nozzles, pest control in dense canopy crops, growth regulators, foliar nutrition
- Performance Specifications of STD Series 500L & 600L
Achieves 94–96% spray uniformity with balanced air distribution and Italian brass nozzles. 88–90% chemical utilization efficiency minimizes wastage. Air output of 28–35 m/s ensures deep canopy penetration. Operating cost remains under ₹150*/ha with minimum fuel consumption and 100% accurate coverage.
- Farmer Decision Support
Farm Size Recommendations
- Small farms (under 5 acres): 200–300L models recommended
- Medium farms (5–25 acres): 500L variants—optimal capacity and efficiency
- Large farms (above 25 acres): 600L variants—maximum productivity with fewer refills
Crop-Specific Recommendations
- Grapes & Pomegranates: 500L F-FAS or 600L F-FAS with 14–20 nozzles
- Mangoes & Citrus (Tall Trees): 600L variants with height-adjustable fan
- Dense Canopy Crops: RAS (Rear Air Suction) variants for better penetration
- Commercial Orchards: 600L models for extended operation
Budget-Wise Categorization
- Economy Models: 500L F-RAS or R-RAS—basic features, cost-effective
- Mid-Range Options: 500L F-FAS—front suction, enhanced coverage
- Premium Models: 600L F-FAS—maximum capacity, air output, and productivity
ROI & Financing
Payback within one season through labor savings (35%), chemical efficiency (20% savings), and reduced refilling time. FMTIC Tested & Approved quality. Central Government subsidies available under agricultural mechanization schemes (subsidy ranges from 25% to 50% depending on state and farmer category).
- Maintenance and Care of STD Series 500L & 600L
- Pump Maintenance: Inspect diaphragm every 50 hrs; replace worn components annually; check oil levels regularly
- Nozzle Care: Clean Italian brass nozzles after each use; calibrate monthly; replace blocked or worn nozzles
- Fan Maintenance: Check aluminium fan blades for damage; adjust blade angles as needed; lubricate gearbox
- Tank Cleaning: Flush tank thoroughly after each application; use fine filtration screen
- Air Unit: Check air flow direction; adjust deflectors as needed for crop coverage
- Filtration System: Clean M120 suction screen filter and top lid screen after every use
- Gearbox: Check gearbox oil levels; lubricate moving parts
- Regular Maintenance: Clean, oil, and grease components every 8–15 days as recommended
- Seasonal Storage: Drain tank completely; clean all components; store in dry, covered area
- Pre-Operation Checklist: Verify PTO connection, belt tension, fan operation, nozzle spray patterns, pressure settings
- Longevity Factors of STD Series 500L & 600L
Heavy-duty LLDPE tank resists chemical corrosion and UV degradation. Hot-dip galvanized chassis (600L models) provides superior corrosion protection. Italian Braglia brass components ensure long service life. Adjustable aluminium axial fan with replaceable blades ensures longevity. Sturdy construction for long-life service. FMTIC tested and approved quality standards guarantee an 8–10 year service life with proper maintenance.
FAQs
What tractor horsepower is required for STD Series 500L & 600L?
30 HP and above for 500L F-RAS and R-RAS; 35 HP and above for 500L F-FAS and 600L F-RAS; 40 HP and above for 600L F-FAS.
What types of sprayers are available in STD Series 500L & 600L, and what are their applications?
Air-assisted sprayers available in 500L (F-Type RAS, F-Type FAS, R-Type RAS) and 600L (F-Type RAS, F-Type FAS) variants for medium to large orchard and vineyard spraying including grapes, pomegranates, mangoes, citrus, and other horticultural crops for pest control, disease management, and fungicide application.
What is the tank capacity and fan size of the STD Series 500L & 600L sprayer?
Tank capacities: 500 L and 600 L; Fan size: 800 mm adjustable aluminium axial fan (F-Type) or round fan (R-Type).
How does STD Series 500L & 600L sprayer help in crop protection and pest management?
Delivers balanced air distribution with high air output (28–35 m/s) and 12–20 Italian brass nozzles, ensuring deep canopy penetration, uniform coverage, and effective pest control, disease prevention, and fungicide application with 100% accuracy.
Why is pump quality and nozzle type important in STD Series 500L & 600L sprayer?
High-capacity diaphragm pump (70–90 LPM) maintains consistent pressure (30–40 bar) for uniform application; Italian Braglia brass nozzles and agitating device ensure precise spray patterns, wear resistance, and proper chemical mixing for long service life.
Is STD Series 500L & 600L sprayer compatible with all tractor brands and models in India?
Yes, fits standard 3-point linkage and PTO shafts (540 RPM) on tractors ≥ 30 HP, compatible with all major brands including Mahindra, John Deere, Sonalika, Swaraj, Farmtrac, and others.
What about fan height adjustment and spray pressure control in STD Series 500L & 600L sprayer?
Height-adjustable fan unit allows vertical positioning; adjustable aluminium fan blades (F-Type) enable airflow control to minimize/increase tractor load; 4-way stainless steel controller with manual ball valves provides spray pressure adjustment (4–10 bar operating range); air flow direction can be changed using deflectors.
How does STD Series 500L & 600L sprayer compare to other crop protection methods?
Offers faster orchard coverage (8–10 ha/day), 35% labor cost reduction, 20% chemical savings, 100% accurate coverage, balanced air distribution, fewer refills, and minimum fuel consumption compared to smaller capacity sprayers or manual methods.
What maintenance schedule should be followed for STD Series 500L & 600L sprayer?
Cleaning, oiling, and greasing every 8–15 days; diaphragm inspection every 50 hrs; nozzle and filter cleaning after each use; fan and gearbox inspection quarterly; annual component replacement as needed.
What warranty and after-sales service support is available for STD Series 500L & 600L?
1 year manufacturer warranty with PAN India service network providing doorstep installation and after-sales support; FMTIC tested and approved quality; spare parts readily available through authorized dealers; customization available subject to technical details and extra cost.
TractorXpert helps farmers choose the right sprayer implement by comparing models, prices, features, and benefits from different manufacturers, helping them save money, improve crop protection efficiency, reduce chemical wastage, and enhance overall farm productivity through precise and effective spraying solutions that enable farmers to protect their crops from pests, diseases, and weeds while optimizing chemical usage and ensuring uniform coverage across their fields for maximum agricultural yield and profitability.
