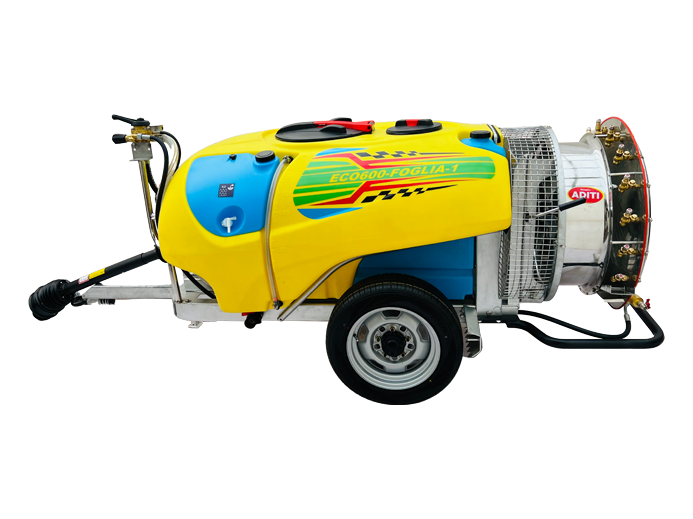

Boraste Agro (ADITI) ECO600-FOGLIA, ECO600-DELUXE, ECO1000-DELUXE
{{ galleryProps.activeIndex + 1 }}/3
Description
- About Product
| Attribute | Details |
| Brand | Boraste Agro (ADITI) |
- About Product
| Attribute | Details |
| Brand | Boraste Agro (ADITI) |
| Model Names | ECO600-FOGLIA, ECO600-DELUXE, ECO1000-DELUXE |
| Implement Type | Air Blast Sprayer / Orchard Sprayer |
| Category | Crop Protection / Plant Protection |
| Compatible Tractor Power | 30–50 HP and above |
| Price Range* | ₹2,75,000* to ₹4,00,000* |
- Key Specification and Technology – ECO600 & ECO1000 Deluxe
| Specification | ECO600-FOGLIA (FAS) | ECO600-DELUXE (FAS) | ECO1000-DELUXE (FAS) |
| Sprayer Type | Air Assisted (Front Air Suction) | Air Assisted (Front Air Suction) | Air Assisted (Front Air Suction) |
| Tank Capacity | 600 L | 600 L | 1000 L |
| Pump Type | Diaphragm Pump | Diaphragm Pump | Diaphragm Pump |
| Pump Capacity | 80–90 LPM | 90–100 LPM | 100–120 LPM |
| Max Working Pressure | 30–40 bar | 30–40 bar | 30–40 bar |
| Fan Size | 800 mm | 800 mm | 1000 mm |
| Fan Type | Adjustable Aluminium Axial Fan | Same | Same |
| Number of Nozzles | 16–20 | 18–22 | 24–30 |
| Nozzle Spacing | 50 cm standard | 50 cm standard | 50 cm standard |
| Nozzle Types | Italian Braglia Brass | Italian Braglia Brass | Italian Braglia Brass |
| Air Output | 30–35 m/s | 30–35 m/s | 35–40 m/s |
| Dimensions (L×W×H) | 1,800 × 1,500 × 1,600 mm | 1,800 × 1,500 × 1,600 mm | 2,200 × 1,800 × 1,700 mm |
| Weight (Unladen) | 320–360 kg | 340–380 kg | 450–500 kg |
| Tractor Power Requirement | 30 HP and above | 35 HP and above | 45 HP and above |
| Mounting Type | 3-Point Linkage | 3-Point Linkage | 3-Point Linkage |
| Drive System | PTO Driven | PTO Driven | PTO Driven |
| PTO Speed Requirement | 540 RPM Standard | 540 RPM Standard | 540 RPM Standard |
| Tank Material | Heavy-Duty HDPE | Heavy-Duty HDPE | Heavy-Duty HDPE |
| Chassis | Hot-Dip Galvanized | Hot-Dip Galvanized | Hot-Dip Galvanized |
- Technical Specifications – ECO600 & ECO1000 Deluxe
| Parameter | Specification |
| Application Rate Capacity | 150–500 L/ha |
| Field Coverage Efficiency | Up to 8–10 ha/day (ECO600), 12–15 ha/day (ECO1000) |
| Fan Height Adjustment | 0.5–2.5 m Manual |
| Pump Working Pressure | 4–10 bar Recommended |
| Agitation System | Jet Agitation |
| Filtration System | Suction Filter, Line Filter, Nozzle Filters |
| Control System | 4-Way Manual Ball Valve Controller |
| Operating Speed Range | 3–8 km/hr |
| Chemical Compatibility | Pesticides, Herbicides, Fungicides, Liquid Fertilizers |
| Weather Suitability | Wind ≤ 7 m/s, Temperature 5–40 °C |
| Maintenance Intervals | Every 100 hrs or season |
| Spare Parts Availability | Pan-India Dealer Network |
| Warranty & Service Support | 1 Year Manufacturer Warranty |
| Fuel Consumption | Minimum in Segment |
- Agricultural Benefits and Applications
These Deluxe air-assisted sprayers ensure deep canopy penetration and balanced air flow, achieving uniform coverage for pest control, disease prevention, and weed management in tall orchards and dense plantations. High air output minimizes drift and maximizes chemical efficiency.
- Enhanced Farming Efficiency
The ECO600 series covers 8–10 ha/day while ECO1000 covers 12–15 ha/day, delivering 30–40% labor savings and 20% chemical savings. Adjustable fan blades reduce tractor load. Deluxe models’ larger fans enhance throughput and accuracy.
- Versatile Crop Applications
Horticultural Crops: Grapes, pomegranates, citrus, mangoes
Orchard Crops: Coconut, arecanut, coffee, tea
Dense Canopy Crops: Apple, guava, custard apple, lychee
Special Applications: Fungicide, growth regulator, foliar nutrition
- Performance Specifications
Achieves 96% spray uniformity with Italian brass nozzles. 90% chemical utilization efficiency reduces waste. ECO1000 air output (35–40 m/s) ensures superior canopy penetration. Operating cost remains under ₹180*/ha.
- Farmer Decision Support
Farm Size Recommendations
- Small orchards (<5 acres): ECO600-FOGLIA
- Medium orchards (5–25 acres): ECO600-DELUXE
- Large orchards (>25 acres): ECO1000-DELUXE
Budget Categories
- Economy: ECO600-FOGLIA—basic front suction
- Mid-Range: ECO600-DELUXE—enhanced pump capacity
- Premium: ECO1000-DELUXE—maximum capacity and air output
ROI & Financing
Payback within one season via 30–40% labor savings and 20% chemical savings. FMTIC Tested & Approved. Government subsidies available under agricultural mechanization schemes.
- Maintenance and Care
- Pump: Inspect diaphragm every 50 hrs; replace annually
- Nozzles: Clean after each use; calibrate monthly
- Fan: Check stainless blades; adjust angles; lubricate gearbox
- Filters: Clean filters weekly
- Chassis: Inspect galvanized frame quarterly
- Storage: Drain and store indoors off-season
- Pre-Op: Verify PTO, hoses, fan, nozzles, pressure settings
- Longevity Factors
HDPE tank resists corrosion; stainless fan and galvanized chassis provide durability. Italian brass nozzles ensure longevity. Deluxe gearbox and reinforced frame support 10+ year service life with proper care.
FAQs
What tractor horsepower is required?
30 HP+ for ECO600-FOGLIA; 35 HP+ for ECO600-DELUXE; 45 HP+ for ECO1000-DELUXE.
What sprayer types and applications?
Front suction air-assisted sprayers for tall orchards; ECO1000 for large plantations.
What is the tank capacity and fan size?
600 L (ECO600) & 1000 L (ECO1000); Fan sizes: 800 mm (ECO600) & 1000 mm (ECO1000).
How does it aid crop protection?
Balanced air flow and high velocity ensure deep canopy coverage, uniform spray, and drift control.
Why pump quality and nozzle type matter?
High-capacity diaphragm pumps (80–120 LPM) and Italian brass nozzles deliver consistent pressure and precise patterns.
Is it compatible with all tractors?
Yes, fits 3-point linkage and PTO shafts (540 RPM) on tractors ≥ 30 HP.
What about fan height adjustment and pressure control?
Manual fan height 0.5–2.5 m; manual valves adjust pressure (4–10 bar).
How compare to other methods?
Provides deeper coverage, 30–40% labor savings, 20% chemical reduction vs manual spraying.
What maintenance schedule?
Weekly filter/nozzle cleaning; pump check every 50 hrs; quarterly chassis/fan inspection.
What warranty and support?
1 year manufacturer warranty; PAN India dealer network support.
